Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: NetworkTrnInfo_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_CoreLib No Plus.xsd
Abstract

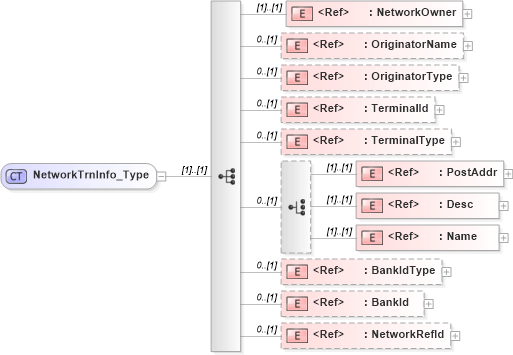

Collapse XSD Schema Diagram:
Drilldown into NetworkRefId in schema ifx170_corelib no plus_xsd Drilldown into BankId in schema ifx170_corelib no plus_xsd Drilldown into BankIdType in schema ifx170_corelib no plus_xsd Drilldown into Name in schema ifx170_corelib no plus_xsd Drilldown into Desc in schema ifx170_corelib no plus_xsd Drilldown into PostAddr in schema ifx170_corelib no plus_xsd Drilldown into TerminalType in schema ifx170_corelib no plus_xsd Drilldown into TerminalId in schema ifx170_corelib no plus_xsd Drilldown into OriginatorType in schema ifx170_corelib no plus_xsd Drilldown into OriginatorName in schema ifx170_corelib no plus_xsd Drilldown into NetworkOwner in schema ifx170_corelib no plus_xsdXSD Diagram of NetworkTrnInfo_Type in schema ifx170_corelib no plus_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="NetworkTrnInfo_Type">
    <xsd:sequence>
        <xsd:element ref="NetworkOwner" />
        <xsd:element ref="OriginatorName" minOccurs="0" />
        <xsd:element ref="OriginatorType" minOccurs="0" />
        <xsd:element ref="TerminalId" minOccurs="0" />
        <xsd:element ref="TerminalType" minOccurs="0" />
        <xsd:choice minOccurs="0">
            <xsd:element ref="PostAddr" />
            <xsd:element ref="Desc" />
            <xsd:element ref="Name" />
        </xsd:choice>
        <xsd:element ref="BankIdType" minOccurs="0" />
        <xsd:element ref="BankId" minOccurs="0" />
        <xsd:element ref="NetworkRefId" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
NetworkOwner ifx:NetworkOwner (1) (1)
OriginatorName ifx:OriginatorName 0 (1)
OriginatorType ifx:OriginatorType 0 (1)
TerminalId ifx:TerminalId 0 (1)
TerminalType ifx:TerminalType 0 (1)
PostAddr ifx:PostAddr (1) (1)
Desc ifx:Desc (1) (1)
Name ifx:Name (1) (1)
BankIdType ifx:BankIdType 0 (1)
BankId ifx:BankId 0 (1)
NetworkRefId ifx:NetworkRefId 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:NetworkTrnInfo
