Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: OrgInfo_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_CoreLib No Plus.xsd
Abstract

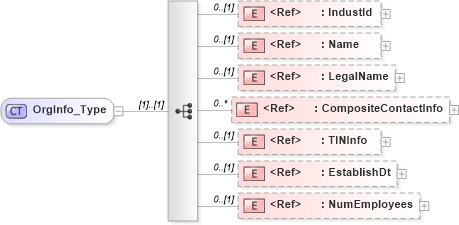

Collapse XSD Schema Diagram:
Drilldown into NumEmployees in schema ifx170_corelib no plus_xsd Drilldown into EstablishDt in schema ifx170_corelib no plus_xsd Drilldown into TINInfo in schema ifx170_corelib no plus_xsd Drilldown into CompositeContactInfo in schema ifx170_corelib no plus_xsd Drilldown into LegalName in schema ifx170_corelib no plus_xsd Drilldown into Name in schema ifx170_corelib no plus_xsd Drilldown into IndustId in schema ifx170_corelib no plus_xsdXSD Diagram of OrgInfo_Type in schema ifx170_corelib no plus_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="OrgInfo_Type">
    <xsd:sequence>
        <xsd:element ref="IndustId" minOccurs="0" />
        <xsd:element ref="Name" minOccurs="0" />
        <xsd:element ref="LegalName" minOccurs="0" />
        <xsd:element ref="CompositeContactInfo" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="TINInfo" minOccurs="0" />
        <xsd:element ref="EstablishDt" minOccurs="0" />
        <xsd:element ref="NumEmployees" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IndustId ifx:IndustId 0 (1)
Name ifx:Name 0 (1)
LegalName ifx:LegalName 0 (1)
CompositeContactInfo ifx:CompositeContactInfo 0 unbounded
TINInfo ifx:TINInfo 0 (1)
EstablishDt ifx:EstablishDt 0 (1)
NumEmployees ifx:NumEmployees 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:OrgInfo
