Documentation for Interactive Financial eXchange (IFX)
Definition Type: Element
Name: OrgnlGrpRefInfAndSts
Namespace: urn:swift:xsd:$pain.004.001.01
Type: pain004:OriginalGroupReferenceInformation2
Containing Schema: $pain.004.001.01.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

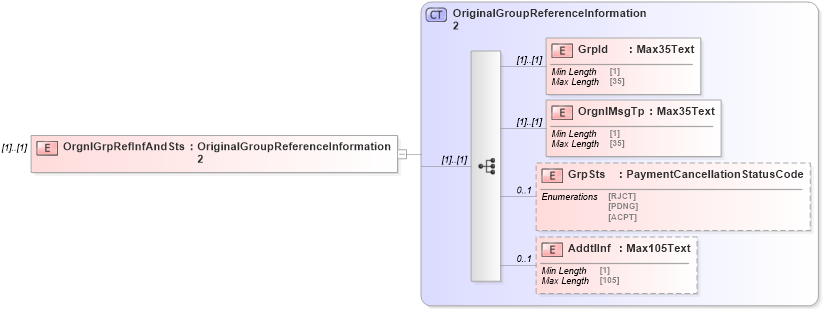

Collapse XSD Schema Diagram:
Drilldown into AddtlInf in schema $pain_004_001_01_xsd Drilldown into GrpSts in schema $pain_004_001_01_xsd Drilldown into OrgnlMsgTp in schema $pain_004_001_01_xsd Drilldown into GrpId in schema $pain_004_001_01_xsd Drilldown into OriginalGroupReferenceInformation2 in schema $pain_004_001_01_xsdXSD Diagram of OrgnlGrpRefInfAndSts in schema $pain_004_001_01_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xs:element name="OrgnlGrpRefInfAndSts" type="OriginalGroupReferenceInformation2" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
GrpId pain004:GrpId (1) (1)
OrgnlMsgTp pain004:OrgnlMsgTp (1) (1)
GrpSts pain004:GrpSts 0 1
AddtlInf pain004:AddtlInf 0 1
Collapse Derivation Tree:
