Documentation for Interactive Financial eXchange (IFX)
Definition Type: Element
Name: OrgnlPmtInf
Namespace: urn:swift:xsd:$pain.004.001.01
Type: pain004:PaymentInformation12
Containing Schema: $pain.004.001.01.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

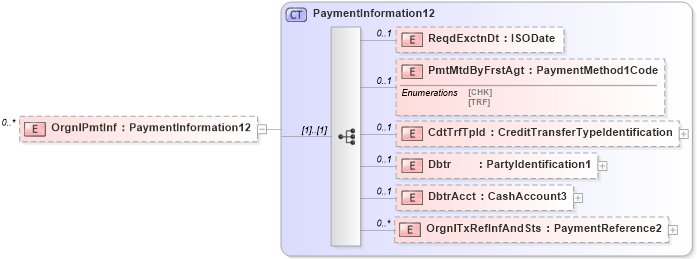

Collapse XSD Schema Diagram:
Drilldown into OrgnlTxRefInfAndSts in schema $pain_004_001_01_xsd Drilldown into DbtrAcct in schema $pain_004_001_01_xsd Drilldown into Dbtr in schema $pain_004_001_01_xsd Drilldown into CdtTrfTpId in schema $pain_004_001_01_xsd Drilldown into PmtMtdByFrstAgt in schema $pain_004_001_01_xsd Drilldown into ReqdExctnDt in schema $pain_004_001_01_xsd Drilldown into PaymentInformation12 in schema $pain_004_001_01_xsdXSD Diagram of OrgnlPmtInf in schema $pain_004_001_01_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xs:element name="OrgnlPmtInf" type="PaymentInformation12" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ReqdExctnDt pain004:ReqdExctnDt 0 1
PmtMtdByFrstAgt pain004:PmtMtdByFrstAgt 0 1
CdtTrfTpId pain004:CdtTrfTpId 0 1
Dbtr pain004:Dbtr 0 1
DbtrAcct pain004:DbtrAcct 0 1
OrgnlTxRefInfAndSts pain004:OrgnlTxRefInfAndSts 0 unbounded
Collapse Derivation Tree:
