Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: PartyAcctRelRec_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_PartyAcctLib.xsd
Abstract

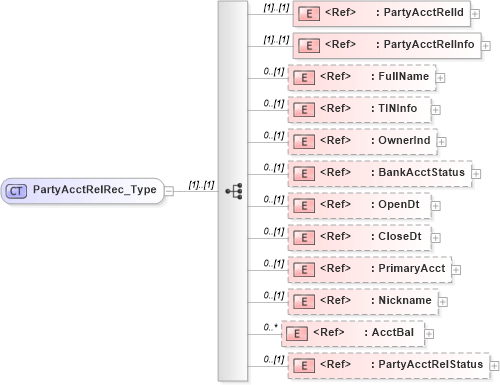

Collapse XSD Schema Diagram:
Drilldown into PartyAcctRelStatus in schema ifx170_partyacctlib_xsd Drilldown into AcctBal in schema ifx170_corelib_xsd Drilldown into Nickname in schema ifx170_corelib_xsd Drilldown into PrimaryAcct in schema ifx170_corelib_xsd Drilldown into CloseDt in schema ifx170_corelib_xsd Drilldown into OpenDt in schema ifx170_corelib_xsd Drilldown into BankAcctStatus in schema ifx170_corelib_xsd Drilldown into OwnerInd in schema ifx170_corelib_xsd Drilldown into TINInfo in schema ifx170_corelib_xsd Drilldown into FullName in schema ifx170_corelib_xsd Drilldown into PartyAcctRelInfo in schema ifx170_partyacctlib_xsd Drilldown into PartyAcctRelId in schema ifx170_corelib_xsdXSD Diagram of PartyAcctRelRec_Type in schema ifx170_partyacctlib_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="PartyAcctRelRec_Type">
    <xsd:sequence>
        <xsd:element ref="PartyAcctRelId" />
        <xsd:element ref="PartyAcctRelInfo" />
        <xsd:element ref="FullName" minOccurs="0" />
        <xsd:element ref="TINInfo" minOccurs="0" />
        <xsd:element ref="OwnerInd" minOccurs="0" />
        <xsd:element ref="BankAcctStatus" minOccurs="0" />
        <xsd:element ref="OpenDt" minOccurs="0" />
        <xsd:element ref="CloseDt" minOccurs="0" />
        <xsd:element ref="PrimaryAcct" minOccurs="0" />
        <xsd:element ref="Nickname" minOccurs="0" />
        <xsd:element ref="AcctBal" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="PartyAcctRelStatus" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PartyAcctRelId ifx:PartyAcctRelId (1) (1)
PartyAcctRelInfo ifx:PartyAcctRelInfo (1) (1)
FullName ifx:FullName 0 (1)
TINInfo ifx:TINInfo 0 (1)
OwnerInd ifx:OwnerInd 0 (1)
BankAcctStatus ifx:BankAcctStatus 0 (1)
OpenDt ifx:OpenDt 0 (1)
CloseDt ifx:CloseDt 0 (1)
PrimaryAcct ifx:PrimaryAcct 0 (1)
Nickname ifx:Nickname 0 (1)
AcctBal ifx:AcctBal 0 unbounded
PartyAcctRelStatus ifx:PartyAcctRelStatus 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:PartyAcctRelRec
