Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: PartyAcctRelStatus_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_PartyAcctLib.xsd
Abstract

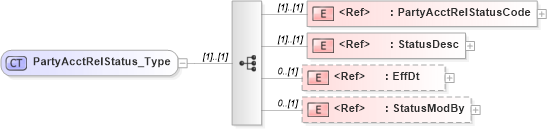

Collapse XSD Schema Diagram:
Drilldown into StatusModBy in schema ifx170_corelib_xsd Drilldown into EffDt in schema ifx170_corelib_xsd Drilldown into StatusDesc in schema ifx170_corelib_xsd Drilldown into PartyAcctRelStatusCode in schema ifx170_partyacctlib_xsdXSD Diagram of PartyAcctRelStatus_Type in schema ifx170_partyacctlib_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="PartyAcctRelStatus_Type">
    <xsd:sequence>
        <xsd:element ref="PartyAcctRelStatusCode" />
        <xsd:element ref="StatusDesc" />
        <xsd:element ref="EffDt" minOccurs="0" />
        <xsd:element ref="StatusModBy" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PartyAcctRelStatusCode ifx:PartyAcctRelStatusCode (1) (1)
StatusDesc ifx:StatusDesc (1) (1)
EffDt ifx:EffDt 0 (1)
StatusModBy ifx:StatusModBy 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:PartyAcctRelStatus
