Definition Type: ComplexType
Name: PartyIdentification1
Namespace: urn:swift:xsd:$pain.004.001.01
Containing Schema: $pain.004.001.01.xsd
Abstract

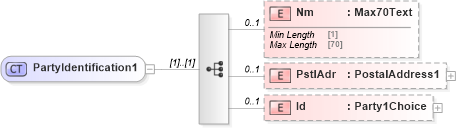

Collapse XSD Schema Diagram:
Drilldown into Id in schema $pain_004_001_01_xsd Drilldown into PstlAdr in schema $pain_004_001_01_xsd Drilldown into Nm in schema $pain_004_001_01_xsdXSD Diagram of PartyIdentification1 in schema $pain_004_001_01_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xs:complexType name="PartyIdentification1">
    <xs:sequence>
        <xs:element name="Nm" type="Max70Text" minOccurs="0" maxOccurs="1" />
        <xs:element name="PstlAdr" type="PostalAddress1" minOccurs="0" maxOccurs="1" />
        <xs:element name="Id" type="Party1Choice" minOccurs="0" maxOccurs="1" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Nm pain004:Nm 0 1
PstlAdr pain004:PstlAdr 0 1
Id pain004:Id 0 1
Collapse Derivation Tree:
Collapse References:
pain004:Cdtr, pain004:Dbtrpain004:InitgPty,
