Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: PassBkMsgRec_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_PassBkLib.xsd
Abstract

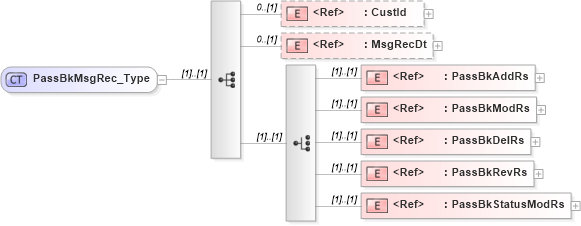

Collapse XSD Schema Diagram:
Drilldown into PassBkStatusModRs in schema ifx170_passbkstatusmod_xsd Drilldown into PassBkRevRs in schema ifx170_passbkrev_xsd Drilldown into PassBkDelRs in schema ifx170_passbkdel_xsd Drilldown into PassBkModRs in schema ifx170_passbkmod_xsd Drilldown into PassBkAddRs in schema ifx170_passbkadd_xsd Drilldown into MsgRecDt in schema ifx170_corelib_xsd Drilldown into CustId in schema ifx170_corelib_xsdXSD Diagram of PassBkMsgRec_Type in schema ifx170_passbklib_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="PassBkMsgRec_Type">
    <xsd:sequence>
        <xsd:element ref="CustId" minOccurs="0" />
        <xsd:element ref="MsgRecDt" minOccurs="0" />
        <xsd:choice>
            <xsd:element ref="PassBkAddRs" />
            <xsd:element ref="PassBkModRs" />
            <xsd:element ref="PassBkDelRs" />
            <xsd:element ref="PassBkRevRs" />
            <xsd:element ref="PassBkStatusModRs" />
        </xsd:choice>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CustId ifx:CustId 0 (1)
MsgRecDt ifx:MsgRecDt 0 (1)
PassBkAddRs ifx:PassBkAddRs (1) (1)
PassBkModRs ifx:PassBkModRs (1) (1)
PassBkDelRs ifx:PassBkDelRs (1) (1)
PassBkRevRs ifx:PassBkRevRs (1) (1)
PassBkStatusModRs ifx:PassBkStatusModRs (1) (1)
Collapse Derivation Tree:
Collapse References:
ifx:PassBkMsgRec
