Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: PersonIdentification2
Namespace: urn:swift:xsd:$pain.002.001.01
Containing Schema: $pain.002.001.01.xsd
Abstract
Collapse XSD Schema Diagram:

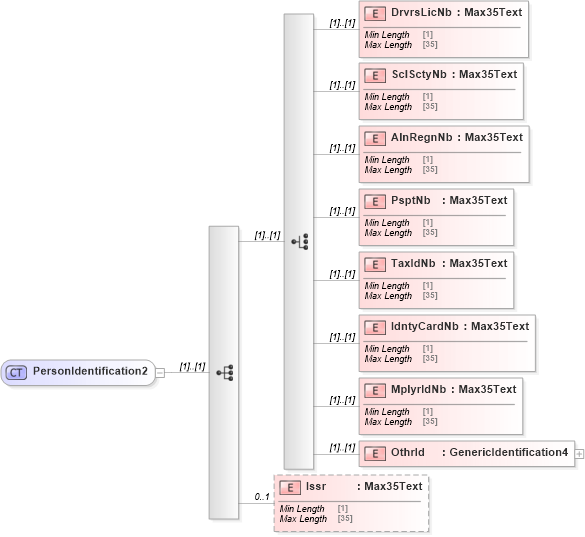

Drilldown into Issr in schema $pain_002_001_01_xsd Drilldown into OthrId in schema $pain_002_001_01_xsd Drilldown into MplyrIdNb in schema $pain_002_001_01_xsd Drilldown into IdntyCardNb in schema $pain_002_001_01_xsd Drilldown into TaxIdNb in schema $pain_002_001_01_xsd Drilldown into PsptNb in schema $pain_002_001_01_xsd Drilldown into AlnRegnNb in schema $pain_002_001_01_xsd Drilldown into SclSctyNb in schema $pain_002_001_01_xsd Drilldown into DrvrsLicNb in schema $pain_002_001_01_xsdXSD Diagram of PersonIdentification2 in schema $pain_002_001_01_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xs:complexType name="PersonIdentification2">
    <xs:sequence>
        <xs:choice>
            <xs:element name="DrvrsLicNb" type="Max35Text" />
            <xs:element name="SclSctyNb" type="Max35Text" />
            <xs:element name="AlnRegnNb" type="Max35Text" />
            <xs:element name="PsptNb" type="Max35Text" />
            <xs:element name="TaxIdNb" type="Max35Text" />
            <xs:element name="IdntyCardNb" type="Max35Text" />
            <xs:element name="MplyrIdNb" type="Max35Text" />
            <xs:element name="OthrId" type="GenericIdentification4" />
        </xs:choice>
        <xs:element name="Issr" type="Max35Text" minOccurs="0" maxOccurs="1" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DrvrsLicNb pain002:DrvrsLicNb (1) (1)
SclSctyNb pain002:SclSctyNb (1) (1)
AlnRegnNb pain002:AlnRegnNb (1) (1)
PsptNb pain002:PsptNb (1) (1)
TaxIdNb pain002:TaxIdNb (1) (1)
IdntyCardNb pain002:IdntyCardNb (1) (1)
MplyrIdNb pain002:MplyrIdNb (1) (1)
OthrId pain002:OthrId (1) (1)
Issr pain002:Issr 0 1
Collapse Derivation Tree:
Collapse References:
pain002:PrvtId
