Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: PersonName_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_CoreLib.xsd
Abstract

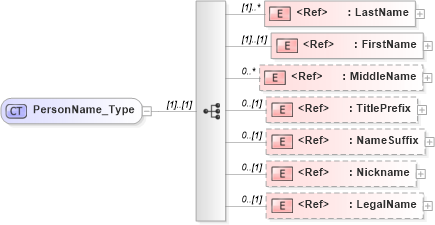

Collapse XSD Schema Diagram:
Drilldown into LegalName in schema ifx170_corelib_xsd Drilldown into Nickname in schema ifx170_corelib_xsd Drilldown into NameSuffix in schema ifx170_corelib_xsd Drilldown into TitlePrefix in schema ifx170_corelib_xsd Drilldown into MiddleName in schema ifx170_corelib_xsd Drilldown into FirstName in schema ifx170_corelib_xsd Drilldown into LastName in schema ifx170_corelib_xsdXSD Diagram of PersonName_Type in schema ifx170_corelib_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="PersonName_Type">
    <xsd:sequence>
        <xsd:element ref="LastName" maxOccurs="unbounded" />
        <xsd:element ref="FirstName" />
        <xsd:element ref="MiddleName" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="TitlePrefix" minOccurs="0" />
        <xsd:element ref="NameSuffix" minOccurs="0" />
        <xsd:element ref="Nickname" minOccurs="0" />
        <xsd:element ref="LegalName" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LastName ifx:LastName (1) unbounded
FirstName ifx:FirstName (1) (1)
MiddleName ifx:MiddleName 0 unbounded
TitlePrefix ifx:TitlePrefix 0 (1)
NameSuffix ifx:NameSuffix 0 (1)
Nickname ifx:Nickname 0 (1)
LegalName ifx:LegalName 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:PersonName
