Documentation for Interactive Financial eXchange (IFX)
Definition Type: Element
Name: PmtAuthRevRq
Namespace: urn:ifxforum-org:XSD:1
Type: ifx:PmtAuthRevRq_Type
Containing Schema: IFX170_PmtAuthRev.xsd
Abstract

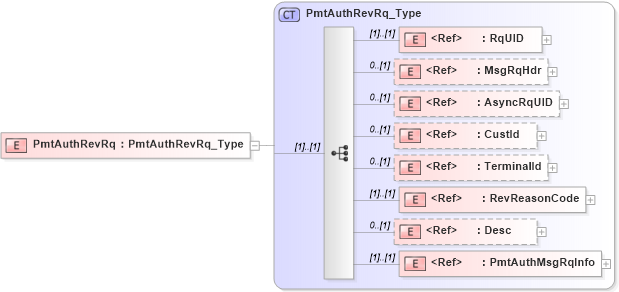

Collapse XSD Schema Diagram:
Drilldown into PmtAuthMsgRqInfo in schema ifx170_pmtlib_xsd Drilldown into Desc in schema ifx170_corelib_xsd Drilldown into RevReasonCode in schema ifx170_corelib_xsd Drilldown into TerminalId in schema ifx170_corelib_xsd Drilldown into CustId in schema ifx170_corelib_xsd Drilldown into AsyncRqUID in schema ifx170_corelib_xsd Drilldown into MsgRqHdr in schema ifx170_corelib_xsd Drilldown into RqUID in schema ifx170_corelib_xsd Drilldown into PmtAuthRevRq_Type in schema ifx170_pmtauthrev_xsdXSD Diagram of PmtAuthRevRq in schema ifx170_pmtauthrev_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:element name="PmtAuthRevRq" type="PmtAuthRevRq_Type" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RqUID ifx:RqUID (1) (1)
MsgRqHdr ifx:MsgRqHdr 0 (1)
AsyncRqUID ifx:AsyncRqUID 0 (1)
CustId ifx:CustId 0 (1)
TerminalId ifx:TerminalId 0 (1)
RevReasonCode ifx:RevReasonCode (1) (1)
Desc ifx:Desc 0 (1)
PmtAuthMsgRqInfo ifx:PmtAuthMsgRqInfo (1) (1)
Collapse Derivation Tree:
