Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: PmtStatus_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_PmtLib.xsd
Abstract
Collapse XSD Schema Diagram:

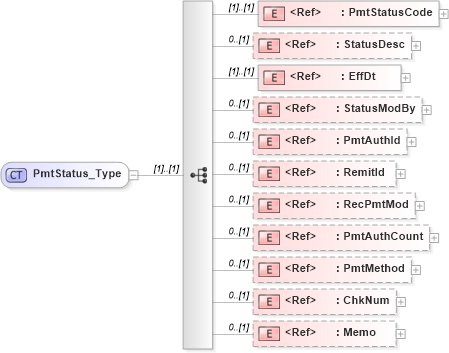

Drilldown into Memo in schema ifx170_corelib_xsd Drilldown into ChkNum in schema ifx170_corelib_xsd Drilldown into PmtMethod in schema ifx170_corelib_xsd Drilldown into PmtAuthCount in schema ifx170_pmtlib_xsd Drilldown into RecPmtMod in schema ifx170_pmtlib_xsd Drilldown into RemitId in schema ifx170_corelib_xsd Drilldown into PmtAuthId in schema ifx170_corelib_xsd Drilldown into StatusModBy in schema ifx170_corelib_xsd Drilldown into EffDt in schema ifx170_corelib_xsd Drilldown into StatusDesc in schema ifx170_corelib_xsd Drilldown into PmtStatusCode in schema ifx170_pmtlib_xsdXSD Diagram of PmtStatus_Type in schema ifx170_pmtlib_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="PmtStatus_Type">
    <xsd:sequence>
        <xsd:element ref="PmtStatusCode" />
        <xsd:element ref="StatusDesc" minOccurs="0" />
        <xsd:element ref="EffDt" />
        <xsd:element ref="StatusModBy" minOccurs="0" />
        <xsd:element ref="PmtAuthId" minOccurs="0" />
        <xsd:element ref="RemitId" minOccurs="0" />
        <xsd:element ref="RecPmtMod" minOccurs="0" />
        <xsd:element ref="PmtAuthCount" minOccurs="0" />
        <xsd:element ref="PmtMethod" minOccurs="0" />
        <xsd:element ref="ChkNum" minOccurs="0" />
        <xsd:element ref="Memo" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PmtStatusCode ifx:PmtStatusCode (1) (1)
StatusDesc ifx:StatusDesc 0 (1)
EffDt ifx:EffDt (1) (1)
StatusModBy ifx:StatusModBy 0 (1)
PmtAuthId ifx:PmtAuthId 0 (1)
RemitId ifx:RemitId 0 (1)
RecPmtMod ifx:RecPmtMod 0 (1)
PmtAuthCount ifx:PmtAuthCount 0 (1)
PmtMethod ifx:PmtMethod 0 (1)
ChkNum ifx:ChkNum 0 (1)
Memo ifx:Memo 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:PmtStatus
