Documentation for Interactive Financial eXchange (IFX)
Definition Type: Element
Name: PmtSyncRs
Namespace: urn:ifxforum-org:XSD:1
Type: ifx:PmtSyncRs_Type
Containing Schema: IFX170_PmtSync.xsd
Abstract

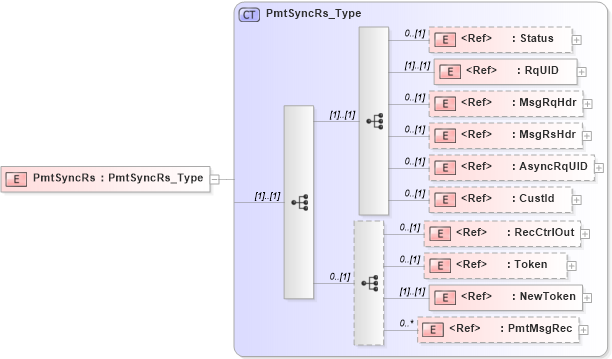

Collapse XSD Schema Diagram:
Drilldown into PmtMsgRec in schema ifx170_pmtlib_xsd Drilldown into NewToken in schema ifx170_corelib_xsd Drilldown into Token in schema ifx170_corelib_xsd Drilldown into RecCtrlOut in schema ifx170_corelib_xsd Drilldown into CustId in schema ifx170_corelib_xsd Drilldown into AsyncRqUID in schema ifx170_corelib_xsd Drilldown into MsgRsHdr in schema ifx170_corelib_xsd Drilldown into MsgRqHdr in schema ifx170_corelib_xsd Drilldown into RqUID in schema ifx170_corelib_xsd Drilldown into Status in schema ifx170_corelib_xsd Drilldown into PmtSyncRs_Type in schema ifx170_pmtsync_xsdXSD Diagram of PmtSyncRs in schema ifx170_pmtsync_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:element name="PmtSyncRs" type="PmtSyncRs_Type" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Status ifx:Status 0 (1)
RqUID ifx:RqUID (1) (1)
MsgRqHdr ifx:MsgRqHdr 0 (1)
MsgRsHdr ifx:MsgRsHdr 0 (1)
AsyncRqUID ifx:AsyncRqUID 0 (1)
CustId ifx:CustId 0 (1)
RecCtrlOut ifx:RecCtrlOut 0 (1)
Token ifx:Token 0 (1)
NewToken ifx:NewToken (1) (1)
PmtMsgRec ifx:PmtMsgRec 0 unbounded
Collapse Derivation Tree:
