Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: POSCapabilities_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_CoreLib.xsd
Abstract
Collapse XSD Schema Diagram:

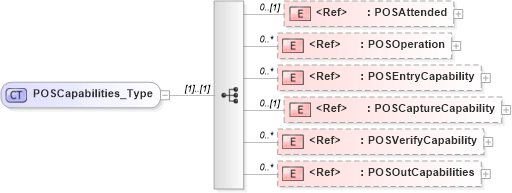

Drilldown into POSOutCapabilities in schema ifx170_corelib_xsd Drilldown into POSVerifyCapability in schema ifx170_corelib_xsd Drilldown into POSCaptureCapability in schema ifx170_corelib_xsd Drilldown into POSEntryCapability in schema ifx170_corelib_xsd Drilldown into POSOperation in schema ifx170_corelib_xsd Drilldown into POSAttended in schema ifx170_corelib_xsdXSD Diagram of POSCapabilities_Type in schema ifx170_corelib_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="POSCapabilities_Type">
    <xsd:sequence>
        <xsd:element ref="POSAttended" minOccurs="0" />
        <xsd:element ref="POSOperation" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="POSEntryCapability" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="POSCaptureCapability" minOccurs="0" />
        <xsd:element ref="POSVerifyCapability" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="POSOutCapabilities" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
POSAttended ifx:POSAttended 0 (1)
POSOperation ifx:POSOperation 0 unbounded
POSEntryCapability ifx:POSEntryCapability 0 unbounded
POSCaptureCapability ifx:POSCaptureCapability 0 (1)
POSVerifyCapability ifx:POSVerifyCapability 0 unbounded
POSOutCapabilities ifx:POSOutCapabilities 0 unbounded
Collapse Derivation Tree:
Collapse References:
ifx:POSCapabilities
