Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: PostalAddress1
Namespace: urn:swift:xsd:$pain.004.001.01
Containing Schema: $pain.004.001.01.xsd
Abstract

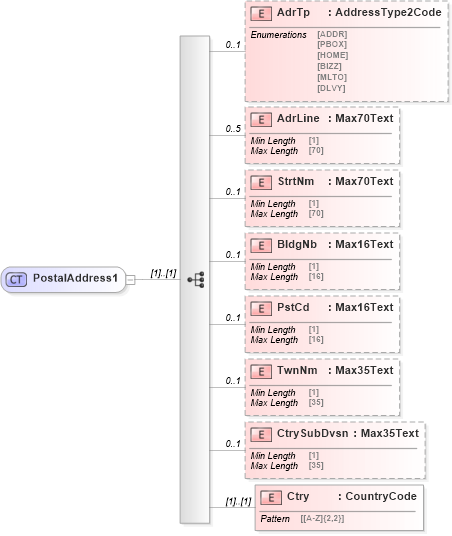

Collapse XSD Schema Diagram:
Drilldown into Ctry in schema $pain_004_001_01_xsd Drilldown into CtrySubDvsn in schema $pain_004_001_01_xsd Drilldown into TwnNm in schema $pain_004_001_01_xsd Drilldown into PstCd in schema $pain_004_001_01_xsd Drilldown into BldgNb in schema $pain_004_001_01_xsd Drilldown into StrtNm in schema $pain_004_001_01_xsd Drilldown into AdrLine in schema $pain_004_001_01_xsd Drilldown into AdrTp in schema $pain_004_001_01_xsdXSD Diagram of PostalAddress1 in schema $pain_004_001_01_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xs:complexType name="PostalAddress1">
    <xs:sequence>
        <xs:element name="AdrTp" type="AddressType2Code" minOccurs="0" maxOccurs="1" />
        <xs:element name="AdrLine" type="Max70Text" minOccurs="0" maxOccurs="5" />
        <xs:element name="StrtNm" type="Max70Text" minOccurs="0" maxOccurs="1" />
        <xs:element name="BldgNb" type="Max16Text" minOccurs="0" maxOccurs="1" />
        <xs:element name="PstCd" type="Max16Text" minOccurs="0" maxOccurs="1" />
        <xs:element name="TwnNm" type="Max35Text" minOccurs="0" maxOccurs="1" />
        <xs:element name="CtrySubDvsn" type="Max35Text" minOccurs="0" maxOccurs="1" />
        <xs:element name="Ctry" type="CountryCode" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AdrTp pain004:AdrTp 0 1
AdrLine pain004:AdrLine 0 5
StrtNm pain004:StrtNm 0 1
BldgNb pain004:BldgNb 0 1
PstCd pain004:PstCd 0 1
TwnNm pain004:TwnNm 0 1
CtrySubDvsn pain004:CtrySubDvsn 0 1
Ctry pain004:Ctry (1) (1)
Collapse Derivation Tree:
Collapse References:
pain004:PstlAdr, pain004:PstlAdr, pain004:PstlAdr
