Documentation for Interactive Financial eXchange (IFX)
Definition Type: Element
Name: RecChkOrdInqRs
Namespace: urn:ifxforum-org:XSD:1
Type: ifx:RecChkOrdInqRs_Type
Containing Schema: IFX170_RecChkOrdInq.xsd
Abstract

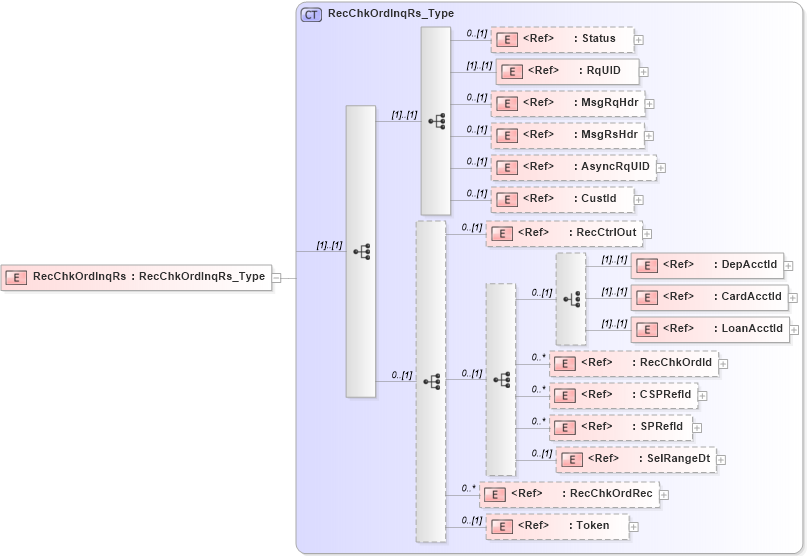

Collapse XSD Schema Diagram:
Drilldown into Token in schema ifx170_corelib_xsd Drilldown into RecChkOrdRec in schema ifx170_chklib_xsd Drilldown into SelRangeDt in schema ifx170_corelib_xsd Drilldown into SPRefId in schema ifx170_corelib_xsd Drilldown into CSPRefId in schema ifx170_corelib_xsd Drilldown into RecChkOrdId in schema ifx170_corelib_xsd Drilldown into LoanAcctId in schema ifx170_corelib_xsd Drilldown into CardAcctId in schema ifx170_corelib_xsd Drilldown into DepAcctId in schema ifx170_corelib_xsd Drilldown into RecCtrlOut in schema ifx170_corelib_xsd Drilldown into CustId in schema ifx170_corelib_xsd Drilldown into AsyncRqUID in schema ifx170_corelib_xsd Drilldown into MsgRsHdr in schema ifx170_corelib_xsd Drilldown into MsgRqHdr in schema ifx170_corelib_xsd Drilldown into RqUID in schema ifx170_corelib_xsd Drilldown into Status in schema ifx170_corelib_xsd Drilldown into RecChkOrdInqRs_Type in schema ifx170_recchkordinq_xsdXSD Diagram of RecChkOrdInqRs in schema ifx170_recchkordinq_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:element name="RecChkOrdInqRs" type="RecChkOrdInqRs_Type" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Status ifx:Status 0 (1)
RqUID ifx:RqUID (1) (1)
MsgRqHdr ifx:MsgRqHdr 0 (1)
MsgRsHdr ifx:MsgRsHdr 0 (1)
AsyncRqUID ifx:AsyncRqUID 0 (1)
CustId ifx:CustId 0 (1)
RecCtrlOut ifx:RecCtrlOut 0 (1)
DepAcctId ifx:DepAcctId (1) (1)
CardAcctId ifx:CardAcctId (1) (1)
LoanAcctId ifx:LoanAcctId (1) (1)
RecChkOrdId ifx:RecChkOrdId 0 unbounded
CSPRefId ifx:CSPRefId 0 unbounded
SPRefId ifx:SPRefId 0 unbounded
SelRangeDt ifx:SelRangeDt 0 (1)
RecChkOrdRec ifx:RecChkOrdRec 0 unbounded
Token ifx:Token 0 (1)
Collapse Derivation Tree:
