Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: RecXferAddRs_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_RecXferAdd.xsd
Abstract

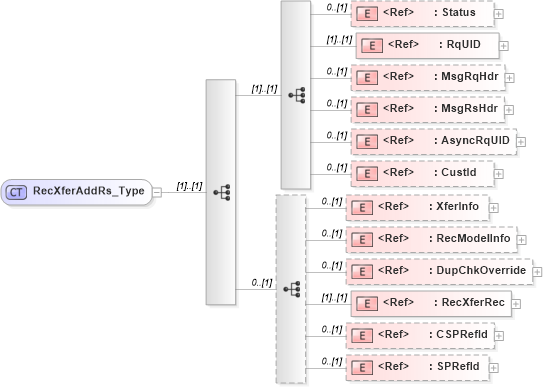

Collapse XSD Schema Diagram:
Drilldown into SPRefId in schema ifx170_corelib_xsd Drilldown into CSPRefId in schema ifx170_corelib_xsd Drilldown into RecXferRec in schema ifx170_xferlib_xsd Drilldown into DupChkOverride in schema ifx170_corelib_xsd Drilldown into RecModelInfo in schema ifx170_corelib_xsd Drilldown into XferInfo in schema ifx170_xferlib_xsd Drilldown into CustId in schema ifx170_corelib_xsd Drilldown into AsyncRqUID in schema ifx170_corelib_xsd Drilldown into MsgRsHdr in schema ifx170_corelib_xsd Drilldown into MsgRqHdr in schema ifx170_corelib_xsd Drilldown into RqUID in schema ifx170_corelib_xsd Drilldown into Status in schema ifx170_corelib_xsdXSD Diagram of RecXferAddRs_Type in schema ifx170_recxferadd_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="RecXferAddRs_Type">
    <xsd:sequence>
        <xsd:sequence>
            <xsd:element ref="Status" minOccurs="0" />
            <xsd:element ref="RqUID" />
            <xsd:element ref="MsgRqHdr" minOccurs="0" />
            <xsd:element ref="MsgRsHdr" minOccurs="0" />
            <xsd:element ref="AsyncRqUID" minOccurs="0" />
            <xsd:element ref="CustId" minOccurs="0" />
        </xsd:sequence>
        <xsd:sequence minOccurs="0">
            <xsd:element ref="XferInfo" minOccurs="0" />
            <xsd:element ref="RecModelInfo" minOccurs="0" />
            <xsd:element ref="DupChkOverride" minOccurs="0" />
            <xsd:element ref="RecXferRec" />
            <xsd:element ref="CSPRefId" minOccurs="0" />
            <xsd:element ref="SPRefId" minOccurs="0" />
        </xsd:sequence>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Status ifx:Status 0 (1)
RqUID ifx:RqUID (1) (1)
MsgRqHdr ifx:MsgRqHdr 0 (1)
MsgRsHdr ifx:MsgRsHdr 0 (1)
AsyncRqUID ifx:AsyncRqUID 0 (1)
CustId ifx:CustId 0 (1)
XferInfo ifx:XferInfo 0 (1)
RecModelInfo ifx:RecModelInfo 0 (1)
DupChkOverride ifx:DupChkOverride 0 (1)
RecXferRec ifx:RecXferRec (1) (1)
CSPRefId ifx:CSPRefId 0 (1)
SPRefId ifx:SPRefId 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:RecXferAddRs
