Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: RemittanceInformation3Choice
Namespace: urn:swift:xsd:$pain.001.001.01
Containing Schema: $pain.001.001.01.xsd
Abstract

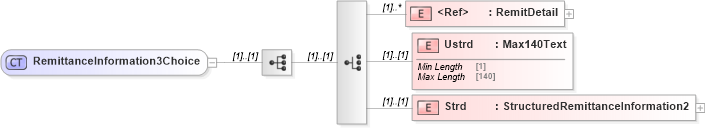

Collapse XSD Schema Diagram:
Drilldown into Strd in schema $pain_001_001_01_xsd Drilldown into Ustrd in schema $pain_001_001_01_xsd Drilldown into RemitDetail in schema ifx170_pmtlib_xsdXSD Diagram of RemittanceInformation3Choice in schema $pain_001_001_01_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xs:complexType name="RemittanceInformation3Choice">
    <xs:sequence>
        <xs:choice>
            <xs:element ref="ifx:RemitDetail" maxOccurs="unbounded" />
            <xs:element name="Ustrd" type="Max140Text" />
            <xs:element name="Strd" type="StructuredRemittanceInformation2" />
        </xs:choice>
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RemitDetail ifx:RemitDetail (1) unbounded
Ustrd pain001:Ustrd (1) (1)
Strd pain001:Strd (1) (1)
Collapse Derivation Tree:
Collapse References:
pain001:RmtInf
