Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: SecObjSyncRs_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_SecObjSync.xsd
Abstract

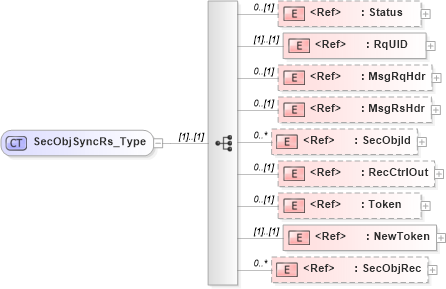

Collapse XSD Schema Diagram:
Drilldown into SecObjRec in schema ifx170_secobjlib_xsd Drilldown into NewToken in schema ifx170_corelib_xsd Drilldown into Token in schema ifx170_corelib_xsd Drilldown into RecCtrlOut in schema ifx170_corelib_xsd Drilldown into SecObjId in schema ifx170_corelib_xsd Drilldown into MsgRsHdr in schema ifx170_corelib_xsd Drilldown into MsgRqHdr in schema ifx170_corelib_xsd Drilldown into RqUID in schema ifx170_corelib_xsd Drilldown into Status in schema ifx170_corelib_xsdXSD Diagram of SecObjSyncRs_Type in schema ifx170_secobjsync_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="SecObjSyncRs_Type">
    <xsd:sequence>
        <xsd:element ref="Status" minOccurs="0" />
        <xsd:element ref="RqUID" />
        <xsd:element ref="MsgRqHdr" minOccurs="0" />
        <xsd:element ref="MsgRsHdr" minOccurs="0" />
        <xsd:element ref="SecObjId" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="RecCtrlOut" minOccurs="0" />
        <xsd:element ref="Token" minOccurs="0" />
        <xsd:element ref="NewToken" />
        <xsd:element ref="SecObjRec" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Status ifx:Status 0 (1)
RqUID ifx:RqUID (1) (1)
MsgRqHdr ifx:MsgRqHdr 0 (1)
MsgRsHdr ifx:MsgRsHdr 0 (1)
SecObjId ifx:SecObjId 0 unbounded
RecCtrlOut ifx:RecCtrlOut 0 (1)
Token ifx:Token 0 (1)
NewToken ifx:NewToken (1) (1)
SecObjRec ifx:SecObjRec 0 unbounded
Collapse Derivation Tree:
Collapse References:
ifx:SecObjSyncRs
