Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: SignonInfo_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_CoreLib No Plus.xsd
Abstract

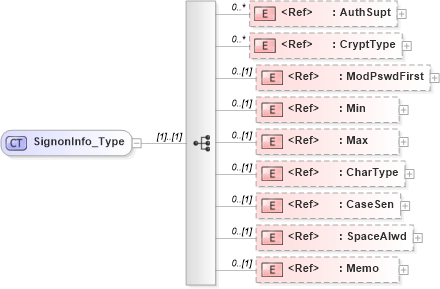

Collapse XSD Schema Diagram:
Drilldown into Memo in schema ifx170_corelib no plus_xsd Drilldown into SpaceAlwd in schema ifx170_corelib no plus_xsd Drilldown into CaseSen in schema ifx170_corelib no plus_xsd Drilldown into CharType in schema ifx170_corelib no plus_xsd Drilldown into Max in schema ifx170_corelib no plus_xsd Drilldown into Min in schema ifx170_corelib no plus_xsd Drilldown into ModPswdFirst in schema ifx170_corelib no plus_xsd Drilldown into CryptType in schema ifx170_corelib no plus_xsd Drilldown into AuthSupt in schema ifx170_corelib no plus_xsdXSD Diagram of SignonInfo_Type in schema ifx170_corelib no plus_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="SignonInfo_Type">
    <xsd:sequence>
        <xsd:element ref="AuthSupt" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CryptType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ModPswdFirst" minOccurs="0" />
        <xsd:element ref="Min" minOccurs="0" />
        <xsd:element ref="Max" minOccurs="0" />
        <xsd:element ref="CharType" minOccurs="0" />
        <xsd:element ref="CaseSen" minOccurs="0" />
        <xsd:element ref="SpaceAlwd" minOccurs="0" />
        <xsd:element ref="Memo" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AuthSupt ifx:AuthSupt 0 unbounded
CryptType ifx:CryptType 0 unbounded
ModPswdFirst ifx:ModPswdFirst 0 (1)
Min ifx:Min 0 (1)
Max ifx:Max 0 (1)
CharType ifx:CharType 0 (1)
CaseSen ifx:CaseSen 0 (1)
SpaceAlwd ifx:SpaceAlwd 0 (1)
Memo ifx:Memo 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:SignonInfo
