Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: SignonRs_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_IFXDocument.xsd
Abstract

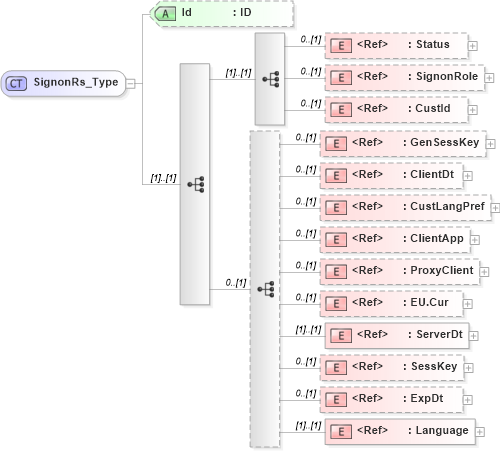

Collapse XSD Schema Diagram:
Drilldown into Language in schema ifx170_corelib_xsd Drilldown into ExpDt in schema ifx170_corelib_xsd Drilldown into SessKey in schema ifx170_corelib_xsd Drilldown into ServerDt in schema ifx170_corelib_xsd Drilldown into EU.Cur in schema ifx170_corelib_xsd Drilldown into ProxyClient in schema ifx170_corelib_xsd Drilldown into ClientApp in schema ifx170_corelib_xsd Drilldown into CustLangPref in schema ifx170_corelib_xsd Drilldown into ClientDt in schema ifx170_corelib_xsd Drilldown into GenSessKey in schema ifx170_corelib_xsd Drilldown into CustId in schema ifx170_corelib_xsd Drilldown into SignonRole in schema ifx170_corelib_xsd Drilldown into Status in schema ifx170_corelib_xsd Drilldown into Id in schema ifx170_ifxdocument_xsdXSD Diagram of SignonRs_Type in schema ifx170_ifxdocument_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="SignonRs_Type">
    <xsd:sequence>
        <xsd:sequence>
            <xsd:element ref="Status" minOccurs="0" />
            <xsd:element ref="SignonRole" minOccurs="0" />
            <xsd:element ref="CustId" minOccurs="0" />
        </xsd:sequence>
        <xsd:sequence minOccurs="0">
            <xsd:element ref="GenSessKey" minOccurs="0" />
            <xsd:element ref="ClientDt" minOccurs="0" />
            <xsd:element ref="CustLangPref" minOccurs="0" />
            <xsd:element ref="ClientApp" minOccurs="0" />
            <xsd:element ref="ProxyClient" minOccurs="0" />
            <xsd:element ref="EU.Cur" minOccurs="0" />
            <xsd:element ref="ServerDt" />
            <xsd:element ref="SessKey" minOccurs="0" />
            <xsd:element ref="ExpDt" minOccurs="0" />
            <xsd:element ref="Language" />
        </xsd:sequence>
    </xsd:sequence>
    <xsd:attribute name="Id" type="xsd:ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Status ifx:Status 0 (1)
SignonRole ifx:SignonRole 0 (1)
CustId ifx:CustId 0 (1)
GenSessKey ifx:GenSessKey 0 (1)
ClientDt ifx:ClientDt 0 (1)
CustLangPref ifx:CustLangPref 0 (1)
ClientApp ifx:ClientApp 0 (1)
ProxyClient ifx:ProxyClient 0 (1)
EU.Cur ifx:EU.Cur 0 (1)
ServerDt ifx:ServerDt (1) (1)
SessKey ifx:SessKey 0 (1)
ExpDt ifx:ExpDt 0 (1)
Language ifx:Language (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Id ifx:Id (Optional)
Collapse Derivation Tree:
Collapse References:
ifx:SignonRs
