Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: StdPayeeInfo_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_CoreLib.xsd
Abstract
Collapse XSD Schema Diagram:

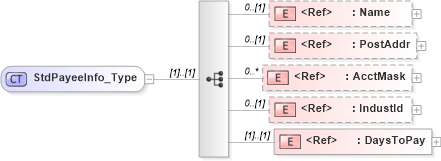

Drilldown into DaysToPay in schema ifx170_corelib_xsd Drilldown into IndustId in schema ifx170_corelib_xsd Drilldown into AcctMask in schema ifx170_corelib_xsd Drilldown into PostAddr in schema ifx170_corelib_xsd Drilldown into Name in schema ifx170_corelib_xsdXSD Diagram of StdPayeeInfo_Type in schema ifx170_corelib_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="StdPayeeInfo_Type">
    <xsd:sequence>
        <xsd:element ref="Name" minOccurs="0" />
        <xsd:element ref="PostAddr" minOccurs="0" />
        <xsd:element ref="AcctMask" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="IndustId" minOccurs="0" />
        <xsd:element ref="DaysToPay" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Name ifx:Name 0 (1)
PostAddr ifx:PostAddr 0 (1)
AcctMask ifx:AcctMask 0 unbounded
IndustId ifx:IndustId 0 (1)
DaysToPay ifx:DaysToPay (1) (1)
Collapse Derivation Tree:
Collapse References:
ifx:StdPayeeInfo
