Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: StdPayeeInqRq_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_StdPayeeInq.xsd
Abstract

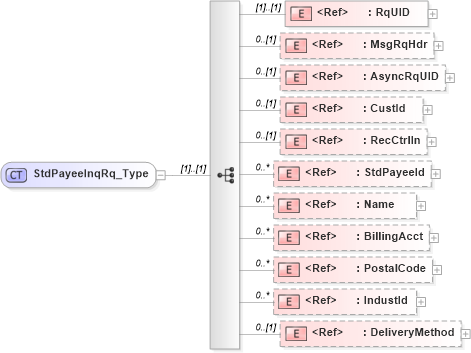

Collapse XSD Schema Diagram:
Drilldown into DeliveryMethod in schema ifx170_corelib_xsd Drilldown into IndustId in schema ifx170_corelib_xsd Drilldown into PostalCode in schema ifx170_corelib_xsd Drilldown into BillingAcct in schema ifx170_corelib_xsd Drilldown into Name in schema ifx170_corelib_xsd Drilldown into StdPayeeId in schema ifx170_corelib_xsd Drilldown into RecCtrlIn in schema ifx170_corelib_xsd Drilldown into CustId in schema ifx170_corelib_xsd Drilldown into AsyncRqUID in schema ifx170_corelib_xsd Drilldown into MsgRqHdr in schema ifx170_corelib_xsd Drilldown into RqUID in schema ifx170_corelib_xsdXSD Diagram of StdPayeeInqRq_Type in schema ifx170_stdpayeeinq_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="StdPayeeInqRq_Type">
    <xsd:sequence>
        <xsd:element ref="RqUID" />
        <xsd:element ref="MsgRqHdr" minOccurs="0" />
        <xsd:element ref="AsyncRqUID" minOccurs="0" />
        <xsd:element ref="CustId" minOccurs="0" />
        <xsd:element ref="RecCtrlIn" minOccurs="0" />
        <xsd:element ref="StdPayeeId" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Name" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="BillingAcct" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="PostalCode" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="IndustId" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="DeliveryMethod" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RqUID ifx:RqUID (1) (1)
MsgRqHdr ifx:MsgRqHdr 0 (1)
AsyncRqUID ifx:AsyncRqUID 0 (1)
CustId ifx:CustId 0 (1)
RecCtrlIn ifx:RecCtrlIn 0 (1)
StdPayeeId ifx:StdPayeeId 0 unbounded
Name ifx:Name 0 unbounded
BillingAcct ifx:BillingAcct 0 unbounded
PostalCode ifx:PostalCode 0 unbounded
IndustId ifx:IndustId 0 unbounded
DeliveryMethod ifx:DeliveryMethod 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:StdPayeeInqRq
