Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: SvcAcctInqRs_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_SvcAcctInq.xsd
Abstract

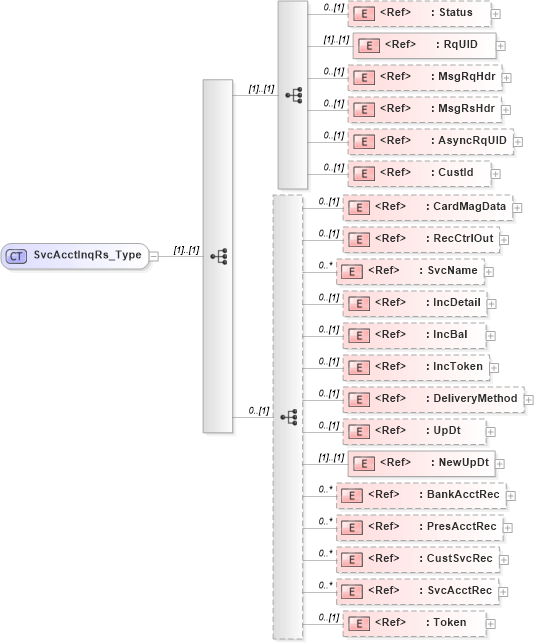

Collapse XSD Schema Diagram:
Drilldown into Token in schema ifx170_corelib_xsd Drilldown into SvcAcctRec in schema ifx170_acctlib_xsd Drilldown into CustSvcRec in schema ifx170_acctlib_xsd Drilldown into PresAcctRec in schema ifx170_corelib_xsd Drilldown into BankAcctRec in schema ifx170_acctlib_xsd Drilldown into NewUpDt in schema ifx170_corelib_xsd Drilldown into UpDt in schema ifx170_corelib_xsd Drilldown into DeliveryMethod in schema ifx170_corelib_xsd Drilldown into IncToken in schema ifx170_corelib_xsd Drilldown into IncBal in schema ifx170_corelib_xsd Drilldown into IncDetail in schema ifx170_corelib_xsd Drilldown into SvcName in schema ifx170_corelib_xsd Drilldown into RecCtrlOut in schema ifx170_corelib_xsd Drilldown into CardMagData in schema ifx170_corelib_xsd Drilldown into CustId in schema ifx170_corelib_xsd Drilldown into AsyncRqUID in schema ifx170_corelib_xsd Drilldown into MsgRsHdr in schema ifx170_corelib_xsd Drilldown into MsgRqHdr in schema ifx170_corelib_xsd Drilldown into RqUID in schema ifx170_corelib_xsd Drilldown into Status in schema ifx170_corelib_xsdXSD Diagram of SvcAcctInqRs_Type in schema ifx170_svcacctinq_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="SvcAcctInqRs_Type">
    <xsd:sequence>
        <xsd:sequence>
            <xsd:element ref="Status" minOccurs="0" />
            <xsd:element ref="RqUID" />
            <xsd:element ref="MsgRqHdr" minOccurs="0" />
            <xsd:element ref="MsgRsHdr" minOccurs="0" />
            <xsd:element ref="AsyncRqUID" minOccurs="0" />
            <xsd:element ref="CustId" minOccurs="0" />
        </xsd:sequence>
        <xsd:sequence minOccurs="0">
            <xsd:element ref="CardMagData" minOccurs="0" />
            <xsd:element ref="RecCtrlOut" minOccurs="0" />
            <xsd:element ref="SvcName" minOccurs="0" maxOccurs="unbounded" />
            <xsd:element ref="IncDetail" minOccurs="0" />
            <xsd:element ref="IncBal" minOccurs="0" />
            <xsd:element ref="IncToken" minOccurs="0" />
            <xsd:element ref="DeliveryMethod" minOccurs="0" />
            <xsd:element ref="UpDt" minOccurs="0" />
            <xsd:element ref="NewUpDt" />
            <xsd:element ref="BankAcctRec" minOccurs="0" maxOccurs="unbounded" />
            <xsd:element ref="PresAcctRec" minOccurs="0" maxOccurs="unbounded" />
            <xsd:element ref="CustSvcRec" minOccurs="0" maxOccurs="unbounded" />
            <xsd:element ref="SvcAcctRec" minOccurs="0" maxOccurs="unbounded" />
            <xsd:element ref="Token" minOccurs="0" />
        </xsd:sequence>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Status ifx:Status 0 (1)
RqUID ifx:RqUID (1) (1)
MsgRqHdr ifx:MsgRqHdr 0 (1)
MsgRsHdr ifx:MsgRsHdr 0 (1)
AsyncRqUID ifx:AsyncRqUID 0 (1)
CustId ifx:CustId 0 (1)
CardMagData ifx:CardMagData 0 (1)
RecCtrlOut ifx:RecCtrlOut 0 (1)
SvcName ifx:SvcName 0 unbounded
IncDetail ifx:IncDetail 0 (1)
IncBal ifx:IncBal 0 (1)
IncToken ifx:IncToken 0 (1)
DeliveryMethod ifx:DeliveryMethod 0 (1)
UpDt ifx:UpDt 0 (1)
NewUpDt ifx:NewUpDt (1) (1)
BankAcctRec ifx:BankAcctRec 0 unbounded
PresAcctRec ifx:PresAcctRec 0 unbounded
CustSvcRec ifx:CustSvcRec 0 unbounded
SvcAcctRec ifx:SvcAcctRec 0 unbounded
Token ifx:Token 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:SvcAcctInqRs
