Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: SvcAcctMsgRec_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_AcctLib.xsd
Abstract

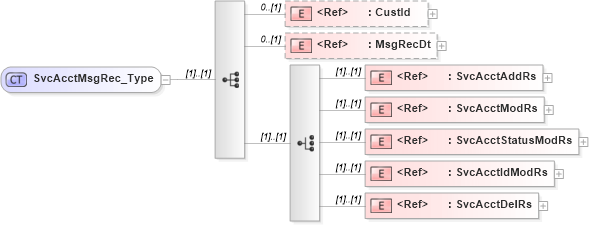

Collapse XSD Schema Diagram:
Drilldown into SvcAcctDelRs in schema ifx170_svcacctdel_xsd Drilldown into SvcAcctIdModRs in schema ifx170_svcacctidmod_xsd Drilldown into SvcAcctStatusModRs in schema ifx170_svcacctstatusmod_xsd Drilldown into SvcAcctModRs in schema ifx170_svcacctmod_xsd Drilldown into SvcAcctAddRs in schema ifx170_svcacctadd_xsd Drilldown into MsgRecDt in schema ifx170_corelib_xsd Drilldown into CustId in schema ifx170_corelib_xsdXSD Diagram of SvcAcctMsgRec_Type in schema ifx170_acctlib_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="SvcAcctMsgRec_Type">
    <xsd:sequence>
        <xsd:element ref="CustId" minOccurs="0" />
        <xsd:element ref="MsgRecDt" minOccurs="0" />
        <xsd:choice>
            <xsd:element ref="SvcAcctAddRs" />
            <xsd:element ref="SvcAcctModRs" />
            <xsd:element ref="SvcAcctStatusModRs" />
            <xsd:element ref="SvcAcctIdModRs" />
            <xsd:element ref="SvcAcctDelRs" />
        </xsd:choice>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CustId ifx:CustId 0 (1)
MsgRecDt ifx:MsgRecDt 0 (1)
SvcAcctAddRs ifx:SvcAcctAddRs (1) (1)
SvcAcctModRs ifx:SvcAcctModRs (1) (1)
SvcAcctStatusModRs ifx:SvcAcctStatusModRs (1) (1)
SvcAcctIdModRs ifx:SvcAcctIdModRs (1) (1)
SvcAcctDelRs ifx:SvcAcctDelRs (1) (1)
Collapse Derivation Tree:
Collapse References:
ifx:SvcAcctMsgRec
