Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: SvcAcctStatus_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_AcctLib.xsd
Abstract

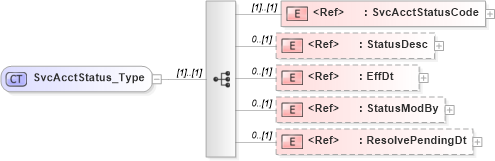

Collapse XSD Schema Diagram:
Drilldown into ResolvePendingDt in schema ifx170_corelib_xsd Drilldown into StatusModBy in schema ifx170_corelib_xsd Drilldown into EffDt in schema ifx170_corelib_xsd Drilldown into StatusDesc in schema ifx170_corelib_xsd Drilldown into SvcAcctStatusCode in schema ifx170_acctlib_xsdXSD Diagram of SvcAcctStatus_Type in schema ifx170_acctlib_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="SvcAcctStatus_Type">
    <xsd:sequence>
        <xsd:element ref="SvcAcctStatusCode" />
        <xsd:element ref="StatusDesc" minOccurs="0" />
        <xsd:element ref="EffDt" minOccurs="0" />
        <xsd:element ref="StatusModBy" minOccurs="0" />
        <xsd:element ref="ResolvePendingDt" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SvcAcctStatusCode ifx:SvcAcctStatusCode (1) (1)
StatusDesc ifx:StatusDesc 0 (1)
EffDt ifx:EffDt 0 (1)
StatusModBy ifx:StatusModBy 0 (1)
ResolvePendingDt ifx:ResolvePendingDt 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:SvcAcctStatus
