Documentation for Interactive Financial eXchange (IFX)
Definition Type: Element
Name: Tax
Namespace: urn:swift:xsd:$pain.001.001.01
Type: pain001:TaxInformation1
Containing Schema: $pain.001.001.01.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

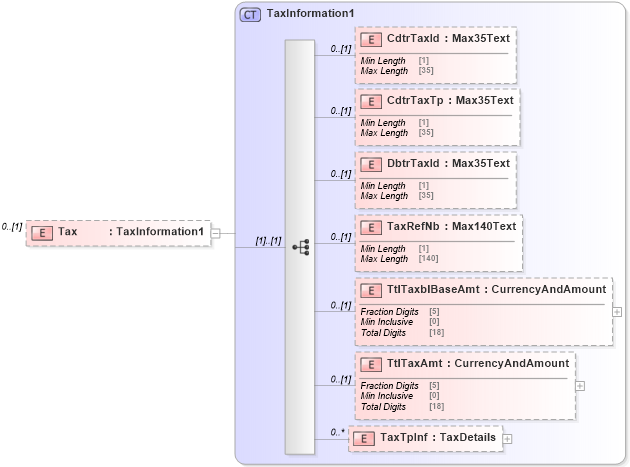

Collapse XSD Schema Diagram:
Drilldown into TaxTpInf in schema $pain_001_001_01_xsd Drilldown into TtlTaxAmt in schema $pain_001_001_01_xsd Drilldown into TtlTaxblBaseAmt in schema $pain_001_001_01_xsd Drilldown into TaxRefNb in schema $pain_001_001_01_xsd Drilldown into DbtrTaxId in schema $pain_001_001_01_xsd Drilldown into CdtrTaxTp in schema $pain_001_001_01_xsd Drilldown into CdtrTaxId in schema $pain_001_001_01_xsd Drilldown into TaxInformation1 in schema $pain_001_001_01_xsdXSD Diagram of Tax in schema $pain_001_001_01_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xs:element name="Tax" type="TaxInformation1" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CdtrTaxId pain001:CdtrTaxId 0 (1)
CdtrTaxTp pain001:CdtrTaxTp 0 (1)
DbtrTaxId pain001:DbtrTaxId 0 (1)
TaxRefNb pain001:TaxRefNb 0 (1)
TtlTaxblBaseAmt pain001:TtlTaxblBaseAmt 0 (1)
TtlTaxAmt pain001:TtlTaxAmt 0 (1)
TaxTpInf pain001:TaxTpInf 0 unbounded
Collapse Derivation Tree:
