Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: XferAdviseRq_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_XferAdvise.xsd
Abstract

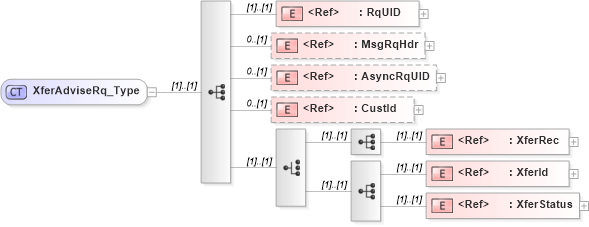

Collapse XSD Schema Diagram:
Drilldown into XferStatus in schema ifx170_xferlib_xsd Drilldown into XferId in schema ifx170_corelib_xsd Drilldown into XferRec in schema ifx170_xferlib_xsd Drilldown into CustId in schema ifx170_corelib_xsd Drilldown into AsyncRqUID in schema ifx170_corelib_xsd Drilldown into MsgRqHdr in schema ifx170_corelib_xsd Drilldown into RqUID in schema ifx170_corelib_xsdXSD Diagram of XferAdviseRq_Type in schema ifx170_xferadvise_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="XferAdviseRq_Type">
    <xsd:sequence>
        <xsd:element ref="RqUID" />
        <xsd:element ref="MsgRqHdr" minOccurs="0" />
        <xsd:element ref="AsyncRqUID" minOccurs="0" />
        <xsd:element ref="CustId" minOccurs="0" />
        <xsd:choice>
            <xsd:sequence>
                <xsd:element ref="XferRec" />
            </xsd:sequence>
            <xsd:sequence>
                <xsd:element ref="XferId" />
                <xsd:element ref="XferStatus" />
            </xsd:sequence>
        </xsd:choice>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RqUID ifx:RqUID (1) (1)
MsgRqHdr ifx:MsgRqHdr 0 (1)
AsyncRqUID ifx:AsyncRqUID 0 (1)
CustId ifx:CustId 0 (1)
XferRec ifx:XferRec (1) (1)
XferId ifx:XferId (1) (1)
XferStatus ifx:XferStatus (1) (1)
Collapse Derivation Tree:
Collapse References:
ifx:XferAdviseRq
