Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: XferInfo_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_XferLib.xsd
Abstract

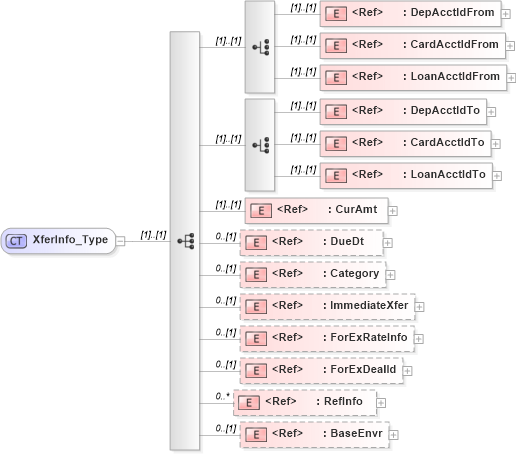

Collapse XSD Schema Diagram:
Drilldown into BaseEnvr in schema ifx170_corelib_xsd Drilldown into RefInfo in schema ifx170_corelib_xsd Drilldown into ForExDealId in schema ifx170_corelib_xsd Drilldown into ForExRateInfo in schema ifx170_corelib_xsd Drilldown into ImmediateXfer in schema ifx170_corelib_xsd Drilldown into Category in schema ifx170_corelib_xsd Drilldown into DueDt in schema ifx170_corelib_xsd Drilldown into CurAmt in schema ifx170_corelib_xsd Drilldown into LoanAcctIdTo in schema ifx170_corelib_xsd Drilldown into CardAcctIdTo in schema ifx170_corelib_xsd Drilldown into DepAcctIdTo in schema ifx170_corelib_xsd Drilldown into LoanAcctIdFrom in schema ifx170_corelib_xsd Drilldown into CardAcctIdFrom in schema ifx170_corelib_xsd Drilldown into DepAcctIdFrom in schema ifx170_corelib_xsdXSD Diagram of XferInfo_Type in schema ifx170_xferlib_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="XferInfo_Type">
    <xsd:sequence>
        <xsd:choice>
            <xsd:element ref="DepAcctIdFrom" />
            <xsd:element ref="CardAcctIdFrom" />
            <xsd:element ref="LoanAcctIdFrom" />
        </xsd:choice>
        <xsd:choice>
            <xsd:element ref="DepAcctIdTo" />
            <xsd:element ref="CardAcctIdTo" />
            <xsd:element ref="LoanAcctIdTo" />
        </xsd:choice>
        <xsd:element ref="CurAmt" />
        <xsd:element ref="DueDt" minOccurs="0" />
        <xsd:element ref="Category" minOccurs="0" />
        <xsd:element ref="ImmediateXfer" minOccurs="0" />
        <xsd:element ref="ForExRateInfo" minOccurs="0" />
        <xsd:element ref="ForExDealId" minOccurs="0" />
        <xsd:element ref="RefInfo" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="BaseEnvr" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DepAcctIdFrom ifx:DepAcctIdFrom (1) (1)
CardAcctIdFrom ifx:CardAcctIdFrom (1) (1)
LoanAcctIdFrom ifx:LoanAcctIdFrom (1) (1)
DepAcctIdTo ifx:DepAcctIdTo (1) (1)
CardAcctIdTo ifx:CardAcctIdTo (1) (1)
LoanAcctIdTo ifx:LoanAcctIdTo (1) (1)
CurAmt ifx:CurAmt (1) (1)
DueDt ifx:DueDt 0 (1)
Category ifx:Category 0 (1)
ImmediateXfer ifx:ImmediateXfer 0 (1)
ForExRateInfo ifx:ForExRateInfo 0 (1)
ForExDealId ifx:ForExDealId 0 (1)
RefInfo ifx:RefInfo 0 unbounded
BaseEnvr ifx:BaseEnvr 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:XferInfo
