Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: XferInqRq_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_XferInq.xsd
Abstract

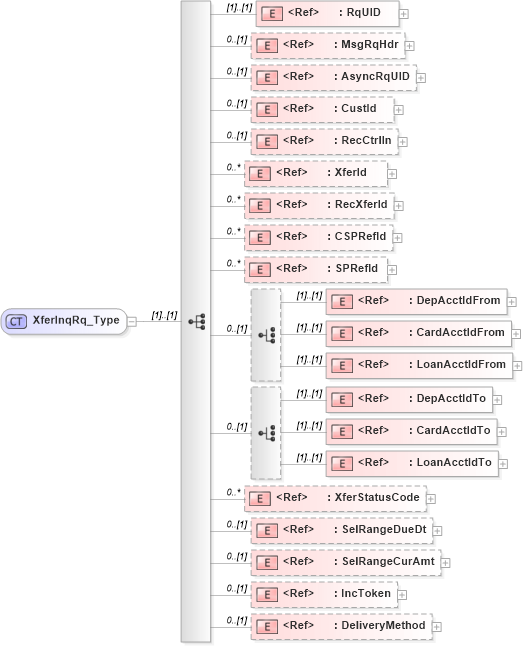

Collapse XSD Schema Diagram:
Drilldown into DeliveryMethod in schema ifx170_corelib_xsd Drilldown into IncToken in schema ifx170_corelib_xsd Drilldown into SelRangeCurAmt in schema ifx170_corelib_xsd Drilldown into SelRangeDueDt in schema ifx170_corelib_xsd Drilldown into XferStatusCode in schema ifx170_xferlib_xsd Drilldown into LoanAcctIdTo in schema ifx170_corelib_xsd Drilldown into CardAcctIdTo in schema ifx170_corelib_xsd Drilldown into DepAcctIdTo in schema ifx170_corelib_xsd Drilldown into LoanAcctIdFrom in schema ifx170_corelib_xsd Drilldown into CardAcctIdFrom in schema ifx170_corelib_xsd Drilldown into DepAcctIdFrom in schema ifx170_corelib_xsd Drilldown into SPRefId in schema ifx170_corelib_xsd Drilldown into CSPRefId in schema ifx170_corelib_xsd Drilldown into RecXferId in schema ifx170_corelib_xsd Drilldown into XferId in schema ifx170_corelib_xsd Drilldown into RecCtrlIn in schema ifx170_corelib_xsd Drilldown into CustId in schema ifx170_corelib_xsd Drilldown into AsyncRqUID in schema ifx170_corelib_xsd Drilldown into MsgRqHdr in schema ifx170_corelib_xsd Drilldown into RqUID in schema ifx170_corelib_xsdXSD Diagram of XferInqRq_Type in schema ifx170_xferinq_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="XferInqRq_Type">
    <xsd:sequence>
        <xsd:element ref="RqUID" />
        <xsd:element ref="MsgRqHdr" minOccurs="0" />
        <xsd:element ref="AsyncRqUID" minOccurs="0" />
        <xsd:element ref="CustId" minOccurs="0" />
        <xsd:element ref="RecCtrlIn" minOccurs="0" />
        <xsd:element ref="XferId" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="RecXferId" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CSPRefId" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="SPRefId" minOccurs="0" maxOccurs="unbounded" />
        <xsd:choice minOccurs="0">
            <xsd:element ref="DepAcctIdFrom" />
            <xsd:element ref="CardAcctIdFrom" />
            <xsd:element ref="LoanAcctIdFrom" />
        </xsd:choice>
        <xsd:choice minOccurs="0">
            <xsd:element ref="DepAcctIdTo" />
            <xsd:element ref="CardAcctIdTo" />
            <xsd:element ref="LoanAcctIdTo" />
        </xsd:choice>
        <xsd:element ref="XferStatusCode" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="SelRangeDueDt" minOccurs="0" />
        <xsd:element ref="SelRangeCurAmt" minOccurs="0" />
        <xsd:element ref="IncToken" minOccurs="0" />
        <xsd:element ref="DeliveryMethod" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RqUID ifx:RqUID (1) (1)
MsgRqHdr ifx:MsgRqHdr 0 (1)
AsyncRqUID ifx:AsyncRqUID 0 (1)
CustId ifx:CustId 0 (1)
RecCtrlIn ifx:RecCtrlIn 0 (1)
XferId ifx:XferId 0 unbounded
RecXferId ifx:RecXferId 0 unbounded
CSPRefId ifx:CSPRefId 0 unbounded
SPRefId ifx:SPRefId 0 unbounded
DepAcctIdFrom ifx:DepAcctIdFrom (1) (1)
CardAcctIdFrom ifx:CardAcctIdFrom (1) (1)
LoanAcctIdFrom ifx:LoanAcctIdFrom (1) (1)
DepAcctIdTo ifx:DepAcctIdTo (1) (1)
CardAcctIdTo ifx:CardAcctIdTo (1) (1)
LoanAcctIdTo ifx:LoanAcctIdTo (1) (1)
XferStatusCode ifx:XferStatusCode 0 unbounded
SelRangeDueDt ifx:SelRangeDueDt 0 (1)
SelRangeCurAmt ifx:SelRangeCurAmt 0 (1)
IncToken ifx:IncToken 0 (1)
DeliveryMethod ifx:DeliveryMethod 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:XferInqRq
