Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: XferRec_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_XferLib.xsd
Abstract

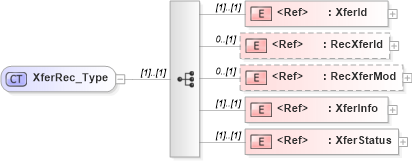

Collapse XSD Schema Diagram:
Drilldown into XferStatus in schema ifx170_xferlib_xsd Drilldown into XferInfo in schema ifx170_xferlib_xsd Drilldown into RecXferMod in schema ifx170_corelib_xsd Drilldown into RecXferId in schema ifx170_corelib_xsd Drilldown into XferId in schema ifx170_corelib_xsdXSD Diagram of XferRec_Type in schema ifx170_xferlib_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="XferRec_Type">
    <xsd:sequence>
        <xsd:element ref="XferId" />
        <xsd:element ref="RecXferId" minOccurs="0" />
        <xsd:element ref="RecXferMod" minOccurs="0" />
        <xsd:element ref="XferInfo" />
        <xsd:element ref="XferStatus" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
XferId ifx:XferId (1) (1)
RecXferId ifx:RecXferId 0 (1)
RecXferMod ifx:RecXferMod 0 (1)
XferInfo ifx:XferInfo (1) (1)
XferStatus ifx:XferStatus (1) (1)
Collapse Derivation Tree:
Collapse References:
ifx:XferRec
