Documentation for Interactive Financial eXchange (IFX)
Definition Type: Element
Name: XferSyncRs
Namespace: urn:ifxforum-org:XSD:1
Type: ifx:XferSyncRs_Type
Containing Schema: IFX170_XferSync.xsd
Abstract
Collapse XSD Schema Diagram:

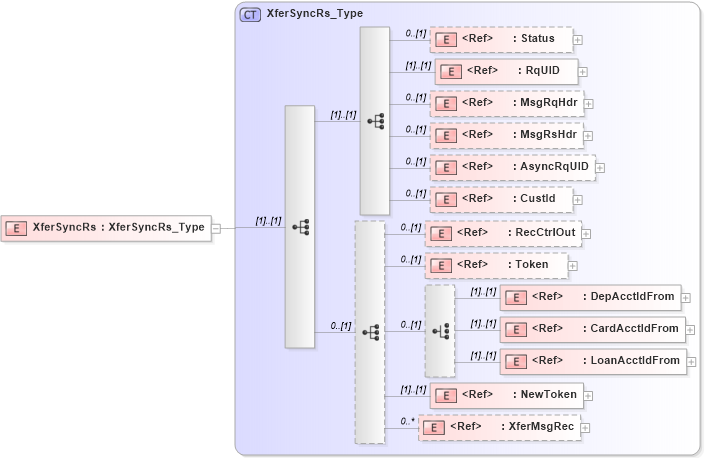

Drilldown into XferMsgRec in schema ifx170_xferlib_xsd Drilldown into NewToken in schema ifx170_corelib_xsd Drilldown into LoanAcctIdFrom in schema ifx170_corelib_xsd Drilldown into CardAcctIdFrom in schema ifx170_corelib_xsd Drilldown into DepAcctIdFrom in schema ifx170_corelib_xsd Drilldown into Token in schema ifx170_corelib_xsd Drilldown into RecCtrlOut in schema ifx170_corelib_xsd Drilldown into CustId in schema ifx170_corelib_xsd Drilldown into AsyncRqUID in schema ifx170_corelib_xsd Drilldown into MsgRsHdr in schema ifx170_corelib_xsd Drilldown into MsgRqHdr in schema ifx170_corelib_xsd Drilldown into RqUID in schema ifx170_corelib_xsd Drilldown into Status in schema ifx170_corelib_xsd Drilldown into XferSyncRs_Type in schema ifx170_xfersync_xsdXSD Diagram of XferSyncRs in schema ifx170_xfersync_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:element name="XferSyncRs" type="XferSyncRs_Type" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Status ifx:Status 0 (1)
RqUID ifx:RqUID (1) (1)
MsgRqHdr ifx:MsgRqHdr 0 (1)
MsgRsHdr ifx:MsgRsHdr 0 (1)
AsyncRqUID ifx:AsyncRqUID 0 (1)
CustId ifx:CustId 0 (1)
RecCtrlOut ifx:RecCtrlOut 0 (1)
Token ifx:Token 0 (1)
DepAcctIdFrom ifx:DepAcctIdFrom (1) (1)
CardAcctIdFrom ifx:CardAcctIdFrom (1) (1)
LoanAcctIdFrom ifx:LoanAcctIdFrom (1) (1)
NewToken ifx:NewToken (1) (1)
XferMsgRec ifx:XferMsgRec 0 unbounded
Collapse Derivation Tree:
