Documentation for Income Tax Department India ITR-4
Definition Type: Element
Name: AddressAL
Namespace: http://incometaxindiaefiling.gov.in/master
Containing Schema: ITR-4_2018_Master.xsd
Abstract
Documentation:
Address of assessee in SCh AL

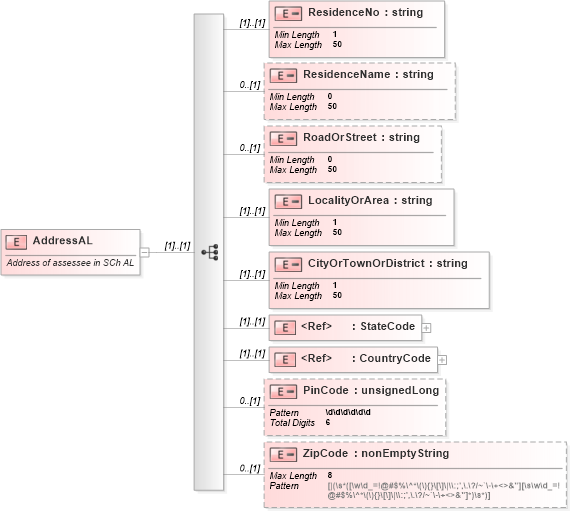

Collapse XSD Schema Diagram:
Drilldown into ZipCode in schema itr-4_2018_master_xsd Drilldown into PinCode in schema itr-4_2018_master_xsd Drilldown into CountryCode in schema itr-4_2018_master_xsd Drilldown into StateCode in schema itr-4_2018_master_xsd Drilldown into CityOrTownOrDistrict in schema itr-4_2018_master_xsd Drilldown into LocalityOrArea in schema itr-4_2018_master_xsd Drilldown into RoadOrStreet in schema itr-4_2018_master_xsd Drilldown into ResidenceName in schema itr-4_2018_master_xsd Drilldown into ResidenceNo in schema itr-4_2018_master_xsdXSD Diagram of AddressAL in schema itr-4_2018_master_xsd (Income Tax Department India ITR-4)
Collapse XSD Schema Code:
<xs:element name="AddressAL">
    <xs:annotation>
        <xs:documentation>Address of assessee in SCh AL</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element name="ResidenceNo">
                <xs:simpleType>
                    <xs:restriction base="xs:string">
                        <xs:maxLength value="50" />
                        <xs:minLength value="1" />
                    </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="ResidenceName" minOccurs="0">
                <xs:simpleType>
                    <xs:restriction base="xs:string">
                        <xs:minLength value="0" />
                        <xs:maxLength value="50" />
                    </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="RoadOrStreet" minOccurs="0">
                <xs:simpleType>
                    <xs:restriction base="xs:string">
                        <xs:maxLength value="50" />
                        <xs:minLength value="0" />
                    </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="LocalityOrArea">
                <xs:simpleType>
                    <xs:restriction base="xs:string">
                        <xs:maxLength value="50" />
                        <xs:minLength value="1" />
                    </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="CityOrTownOrDistrict">
                <xs:simpleType>
                    <xs:restriction base="xs:string">
                        <xs:minLength value="1" />
                        <xs:maxLength value="50" />
                    </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element ref="StateCode" />
            <xs:element ref="CountryCode" />
            <xs:element name="PinCode" minOccurs="0">
                <xs:simpleType>
                    <xs:restriction base="xs:unsignedLong">
                        <xs:totalDigits value="6" />
                        <xs:pattern value="\d\d\d\d\d\d" />
                    </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="ZipCode" minOccurs="0">
                <xs:simpleType>
                    <xs:restriction base="nonEmptyString">
                        <xs:maxLength value="8" />
                    </xs:restriction>
                </xs:simpleType>
            </xs:element>
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ResidenceNo ITRForm:ResidenceNo (1) (1)
ResidenceName ITRForm:ResidenceName 0 (1)
RoadOrStreet ITRForm:RoadOrStreet 0 (1)
LocalityOrArea ITRForm:LocalityOrArea (1) (1)
CityOrTownOrDistrict ITRForm:CityOrTownOrDistrict (1) (1)
StateCode ITRForm:StateCode (1) (1)
CountryCode ITRForm:CountryCode (1) (1)
PinCode ITRForm:PinCode 0 (1)
ZipCode ITRForm:ZipCode 0 (1)
