Documentation for Income Tax Department India ITR-5
Definition Type: Element
Name: Address
Namespace: http://incometaxindiaefiling.gov.in/Corpmaster
Containing Schema: ITR-5_2018_Master.xsd
Abstract
Documentation:
Address of assessee

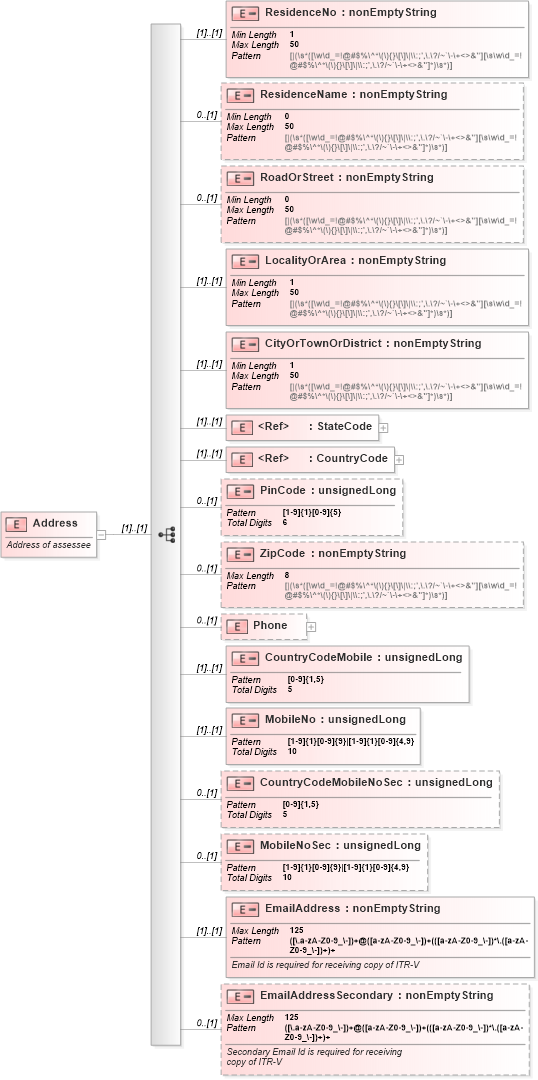

Collapse XSD Schema Diagram:
Drilldown into EmailAddressSecondary in schema itr-5_2018_master_xsd Drilldown into EmailAddress in schema itr-5_2018_master_xsd Drilldown into MobileNoSec in schema itr-5_2018_master_xsd Drilldown into CountryCodeMobileNoSec in schema itr-5_2018_master_xsd Drilldown into MobileNo in schema itr-5_2018_master_xsd Drilldown into CountryCodeMobile in schema itr-5_2018_master_xsd Drilldown into Phone in schema itr-5_2018_master_xsd Drilldown into ZipCode in schema itr-5_2018_master_xsd Drilldown into PinCode in schema itr-5_2018_master_xsd Drilldown into CountryCode in schema itr-5_2018_master_xsd Drilldown into StateCode in schema itr-5_2018_master_xsd Drilldown into CityOrTownOrDistrict in schema itr-5_2018_master_xsd Drilldown into LocalityOrArea in schema itr-5_2018_master_xsd Drilldown into RoadOrStreet in schema itr-5_2018_master_xsd Drilldown into ResidenceName in schema itr-5_2018_master_xsd Drilldown into ResidenceNo in schema itr-5_2018_master_xsdXSD Diagram of Address in schema itr-5_2018_master_xsd (Income Tax Department India ITR-5)
Collapse XSD Schema Code:
<xs:element name="Address">
    <xs:annotation>
        <xs:documentation> Address of assessee</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element name="ResidenceNo">
                <xs:simpleType>
                    <xs:restriction base="nonEmptyString">
                        <xs:maxLength value="50" />
                        <xs:minLength value="1" />
                    </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="ResidenceName" minOccurs="0">
                <xs:simpleType>
                    <xs:restriction base="nonEmptyString">
                        <xs:minLength value="0" />
                        <xs:maxLength value="50" />
                    </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="RoadOrStreet" minOccurs="0">
                <xs:simpleType>
                    <xs:restriction base="nonEmptyString">
                        <xs:maxLength value="50" />
                        <xs:minLength value="0" />
                    </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="LocalityOrArea">
                <xs:simpleType>
                    <xs:restriction base="nonEmptyString">
                        <xs:maxLength value="50" />
                        <xs:minLength value="1" />
                    </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="CityOrTownOrDistrict">
                <xs:simpleType>
                    <xs:restriction base="nonEmptyString">
                        <xs:minLength value="1" />
                        <xs:maxLength value="50" />
                    </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element ref="StateCode" />
            <xs:element ref="CountryCode" />
            <xs:element name="PinCode" minOccurs="0">
                <xs:simpleType>
                    <xs:restriction base="xs:unsignedLong">
                        <xs:totalDigits value="6" />
                        <xs:pattern value="[1-9]{1}[0-9]{5}" />
                    </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="ZipCode" minOccurs="0">
                <xs:simpleType>
                    <xs:restriction base="nonEmptyString">
                        <xs:maxLength value="8" />
                    </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="Phone" minOccurs="0">
                <xs:complexType>
                    <xs:sequence>
                        <xs:element name="STDcode" default="0">
                            <xs:simpleType>
                                <xs:restriction base="xs:unsignedLong">
                                    <xs:totalDigits value="5" />
                                </xs:restriction>
                            </xs:simpleType>
                        </xs:element>
                        <xs:element name="PhoneNo" default="0">
                            <xs:simpleType>
                                <xs:restriction base="xs:unsignedLong">
                                    <xs:totalDigits value="10" />
                                </xs:restriction>
                            </xs:simpleType>
                        </xs:element>
                    </xs:sequence>
                </xs:complexType>
            </xs:element>
            <xs:element name="CountryCodeMobile">
                <xs:simpleType>
                    <xs:restriction base="xs:unsignedLong">
                        <xs:totalDigits value="5" />
                        <xs:pattern value="[0-9]{1,5}" />
                    </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="MobileNo">
                <xs:simpleType>
                    <xs:restriction base="xs:unsignedLong">
                        <xs:totalDigits value="10" />
                        <xs:pattern value="[1-9]{1}[0-9]{9}|[1-9]{1}[0-9]{4,9}" />
                    </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="CountryCodeMobileNoSec" minOccurs="0">
                <xs:simpleType>
                    <xs:restriction base="xs:unsignedLong">
                        <xs:totalDigits value="5" />
                        <xs:pattern value="[0-9]{1,5}" />
                    </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="MobileNoSec" minOccurs="0">
                <xs:simpleType>
                    <xs:restriction base="xs:unsignedLong">
                        <xs:totalDigits value="10" />
                        <xs:pattern value="[1-9]{1}[0-9]{9}|[1-9]{1}[0-9]{4,9}" />
                    </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="EmailAddress">
                <xs:annotation>
                    <xs:documentation>Email Id is required for receiving copy of ITR-V
						</xs:documentation>
                </xs:annotation>
                <xs:simpleType>
                    <xs:restriction base="nonEmptyString">
                        <xs:maxLength value="125" />
                        <xs:pattern value="([\.a-zA-Z0-9_\-])+@([a-zA-Z0-9_\-])+(([a-zA-Z0-9_\-])*\.([a-zA-Z0-9_\-])+)+" />
                    </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="EmailAddressSecondary" minOccurs="0">
                <xs:annotation>
                    <xs:documentation>Secondary Email Id is required for receiving
							copy of ITR-V
						</xs:documentation>
                </xs:annotation>
                <xs:simpleType>
                    <xs:restriction base="nonEmptyString">
                        <xs:maxLength value="125" />
                        <xs:pattern value="([\.a-zA-Z0-9_\-])+@([a-zA-Z0-9_\-])+(([a-zA-Z0-9_\-])*\.([a-zA-Z0-9_\-])+)+" />
                    </xs:restriction>
                </xs:simpleType>
            </xs:element>
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ResidenceNo ITRForm:ResidenceNo (1) (1)
ResidenceName ITRForm:ResidenceName 0 (1)
RoadOrStreet ITRForm:RoadOrStreet 0 (1)
LocalityOrArea ITRForm:LocalityOrArea (1) (1)
CityOrTownOrDistrict ITRForm:CityOrTownOrDistrict (1) (1)
StateCode ITRForm:StateCode (1) (1)
CountryCode ITRForm:CountryCode (1) (1)
PinCode ITRForm:PinCode 0 (1)
ZipCode ITRForm:ZipCode 0 (1)
Phone ITRForm:Phone 0 (1)
CountryCodeMobile ITRForm:CountryCodeMobile (1) (1)
MobileNo ITRForm:MobileNo (1) (1)
CountryCodeMobileNoSec ITRForm:CountryCodeMobileNoSec 0 (1)
MobileNoSec ITRForm:MobileNoSec 0 (1)
EmailAddress ITRForm:EmailAddress (1) (1)
EmailAddressSecondary ITRForm:EmailAddressSecondary 0 (1)
