Documentation for Membrane Service Proxy
Definition Type: Element
Name: rateLimiter
Namespace: http://membrane-soa.org/proxies/1/
Type: beans:identifiedType
Containing Schema: proxies-1.xsd
Abstract

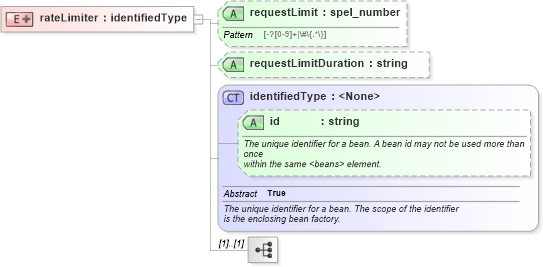

Collapse XSD Schema Diagram:
Drilldown into id in schema spring-beans-3_1_xsd Drilldown into identifiedType in schema spring-beans-3_1_xsd Drilldown into requestLimitDuration in schema proxies-1_xsd Drilldown into requestLimit in schema proxies-1_xsdXSD Diagram of rateLimiter in schema proxies-1_xsd (Membrane Service Proxy)
Collapse XSD Schema Code:
<xsd:element name="rateLimiter">
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="beans:identifiedType">
                <xsd:sequence>
                </xsd:sequence>
                <xsd:attribute name="requestLimit" type="spel_number">
                </xsd:attribute>
                <xsd:attribute name="requestLimitDuration" type="xsd:string">
                </xsd:attribute>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
id beans:id (Optional)
requestLimit nsB:requestLimit (Optional)
requestLimitDuration nsB:requestLimitDuration (Optional)
Collapse Derivation Tree:
