Documentation for Membrane Service Proxy
Definition Type: Element
Name: ssl
Namespace: http://membrane-soa.org/proxies/1/
Type: beans:identifiedType
Containing Schema: proxies-1.xsd
Abstract

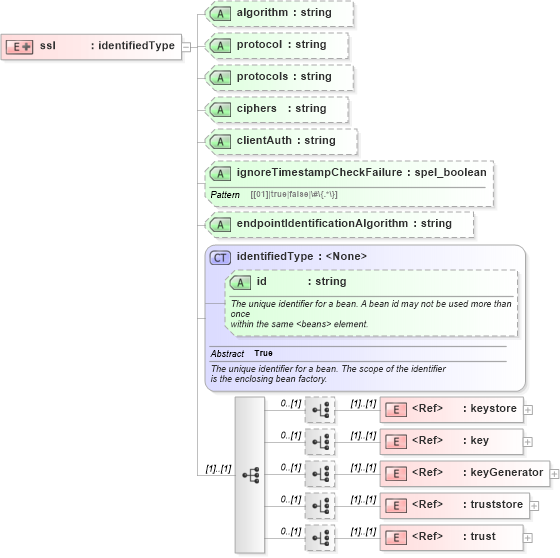

Collapse XSD Schema Diagram:
Drilldown into trust in schema proxies-1_xsd Drilldown into truststore in schema proxies-1_xsd Drilldown into keyGenerator in schema proxies-1_xsd Drilldown into key in schema proxies-1_xsd Drilldown into keystore in schema proxies-1_xsd Drilldown into id in schema spring-beans-3_1_xsd Drilldown into identifiedType in schema spring-beans-3_1_xsd Drilldown into endpointIdentificationAlgorithm in schema proxies-1_xsd Drilldown into ignoreTimestampCheckFailure in schema proxies-1_xsd Drilldown into clientAuth in schema proxies-1_xsd Drilldown into ciphers in schema proxies-1_xsd Drilldown into protocols in schema proxies-1_xsd Drilldown into protocol in schema proxies-1_xsd Drilldown into algorithm in schema proxies-1_xsdXSD Diagram of ssl in schema proxies-1_xsd (Membrane Service Proxy)
Collapse XSD Schema Code:
<xsd:element name="ssl">
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="beans:identifiedType">
                <xsd:sequence>
                    <xsd:choice minOccurs="0">
                        <xsd:element ref="keystore">
                        </xsd:element>
                    </xsd:choice>
                    <xsd:choice minOccurs="0">
                        <xsd:element ref="key">
                        </xsd:element>
                    </xsd:choice>
                    <xsd:choice minOccurs="0">
                        <xsd:element ref="keyGenerator">
                        </xsd:element>
                    </xsd:choice>
                    <xsd:choice minOccurs="0">
                        <xsd:element ref="truststore">
                        </xsd:element>
                    </xsd:choice>
                    <xsd:choice minOccurs="0">
                        <xsd:element ref="trust">
                        </xsd:element>
                    </xsd:choice>
                </xsd:sequence>
                <xsd:attribute name="algorithm" type="xsd:string">
                </xsd:attribute>
                <xsd:attribute name="protocol" type="xsd:string">
                </xsd:attribute>
                <xsd:attribute name="protocols" type="xsd:string">
                </xsd:attribute>
                <xsd:attribute name="ciphers" type="xsd:string">
                </xsd:attribute>
                <xsd:attribute name="clientAuth" type="xsd:string">
                </xsd:attribute>
                <xsd:attribute name="ignoreTimestampCheckFailure" type="spel_boolean">
                </xsd:attribute>
                <xsd:attribute name="endpointIdentificationAlgorithm" type="xsd:string">
                </xsd:attribute>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
keystore nsB:keystore (1) (1)
key nsB:key (1) (1)
keyGenerator nsB:keyGenerator (1) (1)
truststore nsB:truststore (1) (1)
trust nsB:trust (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id beans:id (Optional)
algorithm nsB:algorithm (Optional)
protocol nsB:protocol (Optional)
protocols nsB:protocols (Optional)
ciphers nsB:ciphers (Optional)
clientAuth nsB:clientAuth (Optional)
ignoreTimestampCheckFailure nsB:ignoreTimestampCheckFailure (Optional)
endpointIdentificationAlgorithm nsB:endpointIdentificationAlgorithm (Optional)
Collapse Derivation Tree:
