Documentation for Membrane Service Proxy
Definition Type: Element
Name: switch
Namespace: http://membrane-soa.org/proxies/1/
Type: beans:identifiedType
Containing Schema: proxies-1.xsd
Abstract

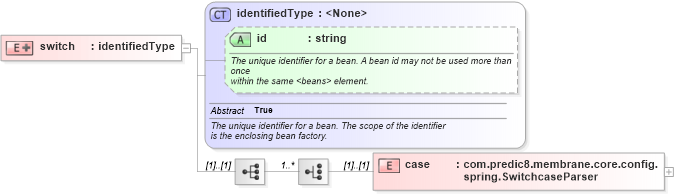

Collapse XSD Schema Diagram:
Drilldown into case in schema proxies-1_xsd Drilldown into id in schema spring-beans-3_1_xsd Drilldown into identifiedType in schema spring-beans-3_1_xsdXSD Diagram of switch in schema proxies-1_xsd (Membrane Service Proxy)
Collapse XSD Schema Code:
<xsd:element name="switch">
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="beans:identifiedType">
                <xsd:sequence>
                    <xsd:choice minOccurs="1" maxOccurs="unbounded">
                        <xsd:element name="case" type="com.predic8.membrane.core.config.spring.SwitchcaseParser">
                        </xsd:element>
                    </xsd:choice>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
case nsB:case (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id beans:id (Optional)
Collapse Derivation Tree:
