Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: AbstractContinuousCoverageType
Namespace: http://niem.gov/niem/external/ogc-gml/3.1.1/dhs-gmo/1.0.0
Type: gml:AbstractCoverageType
Containing Schema: gml.xsd
Abstract True
Documentation:
A continuous coverage as defined in ISO 19123 is a coverage that can return different values for the same feature attribute at different direct positions within a single spatiotemporal object in its spatiotemporal domain

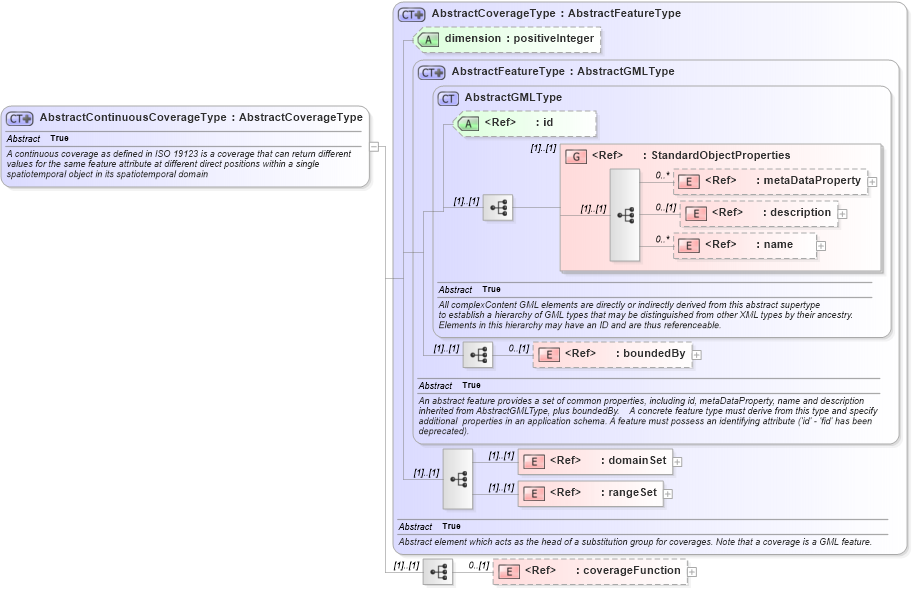

Collapse XSD Schema Diagram:
Drilldown into coverageFunction in schema gml_xsd Drilldown into rangeSet in schema gml_xsd Drilldown into domainSet in schema gml_xsd Drilldown into boundedBy in schema gml_xsd Drilldown into name in schema gml_xsd Drilldown into description in schema gml_xsd Drilldown into metaDataProperty in schema gml_xsd Drilldown into StandardObjectProperties in schema gml_xsd Drilldown into id in schema gml_xsd Drilldown into AbstractGMLType in schema gml_xsd Drilldown into AbstractFeatureType in schema gml_xsd Drilldown into dimension in schema gml_xsd Drilldown into AbstractCoverageType in schema gml_xsdXSD Diagram of AbstractContinuousCoverageType in schema gml_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<complexType name="AbstractContinuousCoverageType" abstract="true">
    <annotation>
        <appinfo source="urn:opengis:specification:gml:schema-xsd:coverage:3.1.1">coverage.xsd</appinfo>
        <documentation>A continuous coverage as defined in ISO 19123 is a coverage that can return different values for the same feature attribute at different direct positions within a single spatiotemporal object in its spatiotemporal domain</documentation>
    </annotation>
    <complexContent>
        <extension base="gml:AbstractCoverageType">
            <sequence>
                <element ref="gml:coverageFunction" minOccurs="0" />
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
boundedBy gml:boundedBy 0 (1)
domainSet gml:domainSet (1) (1)
rangeSet gml:rangeSet (1) (1)
coverageFunction gml:coverageFunction 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Optional
dimension gml:dimension Optional
Collapse Derivation Tree:
Collapse References:
gml:_ContinuousCoverage
