Definition Type: ComplexType
Name: AbstractRouteSegmentType
Namespace: http://niem.gov/niem/external/ogc-openls/1.1.0/dhs-gmo/1.0.0
Containing Schema: ols.xsd
Abstract True
Documentation:
Defines the characteristics of a segment along a route.

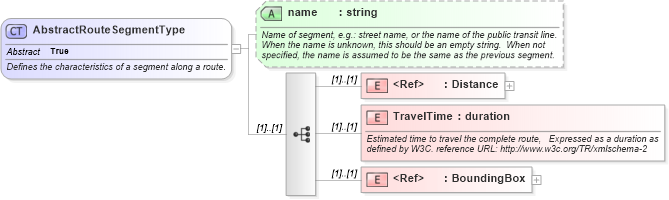

Collapse XSD Schema Diagram:
Drilldown into BoundingBox in schema ols_xsd Drilldown into TravelTime in schema ols_xsd Drilldown into Distance in schema ols_xsd Drilldown into name in schema ols_xsdXSD Diagram of AbstractRouteSegmentType in schema ols_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<complexType name="AbstractRouteSegmentType" abstract="true">
    <annotation>
        <appinfo source="ADT.xsd" />
        <documentation>Defines the characteristics of a segment along a route.</documentation>
    </annotation>
    <sequence>
        <element ref="xls:Distance">
            <annotation>
                <documentation>Distance along the segment.</documentation>
            </annotation>
        </element>
        <element name="TravelTime" type="duration">
            <annotation>
                <documentation>Estimated time to travel the complete route,   Expressed as a duration as defined by W3C. reference URL: http://www.w3c.org/TR/xmlschema-2</documentation>
            </annotation>
        </element>
        <element ref="xls:BoundingBox">
            <annotation>
                <documentation>Rectangular area bounding the segment.</documentation>
            </annotation>
        </element>
    </sequence>
    <attribute name="name" type="string" use="optional">
        <annotation>
            <documentation>Name of segment, e.g.: street name, or the name of the public transit line.  When the name is unknown, this should be an empty string.  When not specified, the name is assumed to be the same as the previous segment.</documentation>
        </annotation>
    </attribute>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Distance xls:Distance (1) (1)
TravelTime xls:TravelTime (1) (1)
BoundingBox xls:BoundingBox (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
name xls:name Optional
Collapse Derivation Tree:
Collapse References:
xls:_NextSegmentxls:RouteSegmentType,
