Definition Type: ComplexType
Name: AbstractTimeGeometricPrimitiveType
Namespace: http://niem.gov/niem/external/ogc-gml/3.1.1/dhs-gmo/1.0.0
Type: gml:AbstractTimePrimitiveType
Containing Schema: gml.xsd
Abstract True
Documentation:
The abstract supertype for temporal geometric primitives. A temporal geometry must be associated with a temporal reference system via URI. The Gregorian calendar with UTC is the default reference system, following ISO 8601. Other reference systems in common use include the GPS calendar and the Julian calendar.

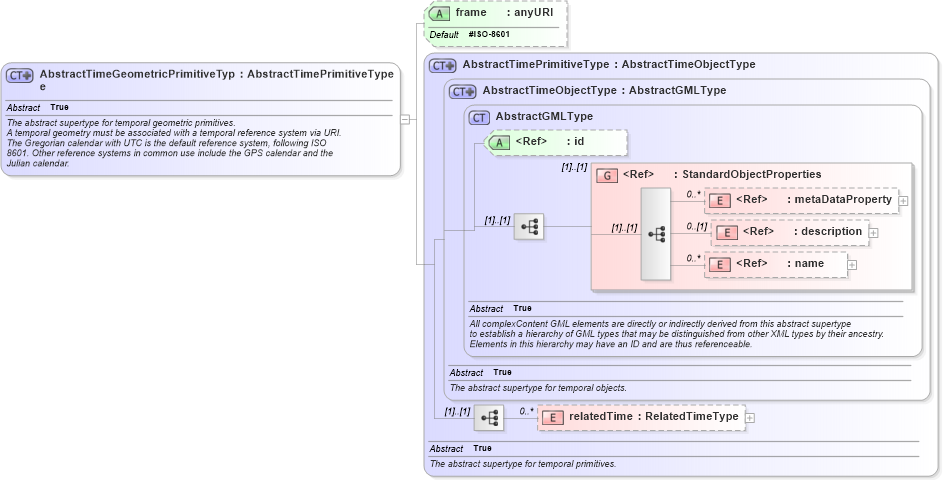

Collapse XSD Schema Diagram:
Drilldown into relatedTime in schema gml_xsd Drilldown into name in schema gml_xsd Drilldown into description in schema gml_xsd Drilldown into metaDataProperty in schema gml_xsd Drilldown into StandardObjectProperties in schema gml_xsd Drilldown into id in schema gml_xsd Drilldown into AbstractGMLType in schema gml_xsd Drilldown into AbstractTimeObjectType in schema gml_xsd Drilldown into AbstractTimePrimitiveType in schema gml_xsd Drilldown into frame in schema gml_xsdXSD Diagram of AbstractTimeGeometricPrimitiveType in schema gml_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<complexType name="AbstractTimeGeometricPrimitiveType" abstract="true">
    <annotation>
        <appinfo source="urn:opengis:specification:gml:schema-xsd:temporal:3.1.1">temporal.xsd</appinfo>
        <documentation xml:lang="en">
      The abstract supertype for temporal geometric primitives.
       A temporal geometry must be associated with a temporal reference system via URI.
       The Gregorian calendar with UTC is the default reference system, following ISO
       8601. Other reference systems in common use include the GPS calendar and the
       Julian calendar.
      </documentation>
    </annotation>
    <complexContent>
        <extension base="gml:AbstractTimePrimitiveType">
            <attribute name="frame" type="anyURI" use="optional" default="#ISO-8601" />
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
relatedTime gml:relatedTime 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Optional
frame gml:frame #ISO-8601 Optional
Collapse Derivation Tree:
Collapse References:
gml:_TimeGeometricPrimitivegml:TimeInstantType, gml:TimePeriodType,
