Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: ActivityAugmentationType
Namespace: http://niem.gov/niem/ansi-nist/2.0
Type: s:AugmentationType
Containing Schema: ansi-nist.xsd
Abstract
Documentation:
A data type for additional information about an activity.

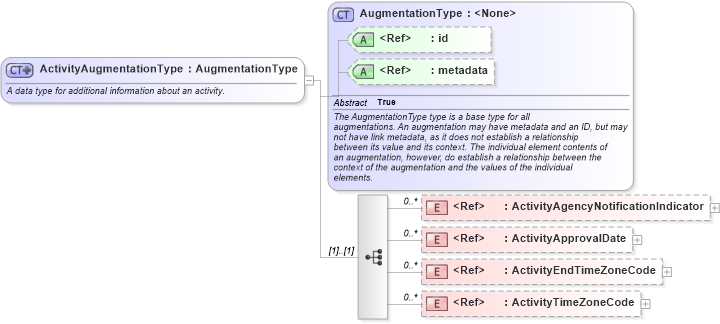

Collapse XSD Schema Diagram:
Drilldown into ActivityTimeZoneCode in schema ansi-nist_xsd Drilldown into ActivityEndTimeZoneCode in schema ansi-nist_xsd Drilldown into ActivityApprovalDate in schema ansi-nist_xsd Drilldown into ActivityAgencyNotificationIndicator in schema ansi-nist_xsd Drilldown into metadata in schema structures_xsd Drilldown into id in schema structures_xsd Drilldown into AugmentationType in schema structures_xsdXSD Diagram of ActivityAugmentationType in schema ansi-nist_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xsd:complexType name="ActivityAugmentationType">
    <xsd:annotation>
        <xsd:documentation>A data type for additional information about an activity.</xsd:documentation>
        <xsd:appinfo>
            <i:Base i:namespace="http://niem.gov/niem/structures/2.0" i:name="AugmentationType" xmlns:i="http://niem.gov/niem/appinfo/2.0" />
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="s:AugmentationType">
            <xsd:sequence>
                <xsd:element ref="ansi-nist:ActivityAgencyNotificationIndicator" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="ansi-nist:ActivityApprovalDate" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="ansi-nist:ActivityEndTimeZoneCode" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="ansi-nist:ActivityTimeZoneCode" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ActivityAgencyNotificationIndicator ansi-nist:ActivityAgencyNotificationIndicator 0 unbounded
ActivityApprovalDate ansi-nist:ActivityApprovalDate 0 unbounded
ActivityEndTimeZoneCode ansi-nist:ActivityEndTimeZoneCode 0 unbounded
ActivityTimeZoneCode ansi-nist:ActivityTimeZoneCode 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id s:id (Optional)
metadata s:metadata (Optional)
Collapse Derivation Tree:
Collapse References:
ansi-nist:ActivityAugmentation
