Definition Type:	Element
Name:	Address
Namespace:	http://niem.gov/niem/external/ogc-openls/1.1.0/dhs-gmo/1.0.0
Type:	xls:AddressType
Containing Schema:	ols.xsd
Abstract
Documentation:	The Address ADT. An address that is either a “Free Form Address” or a “Street Address” or an “Intersection Address”, with 0 or more “place” elements and an optional “postalCode” element. It also has two optional attributes, the “addressee” and the “phone number”, and one required attribute, the “country”.

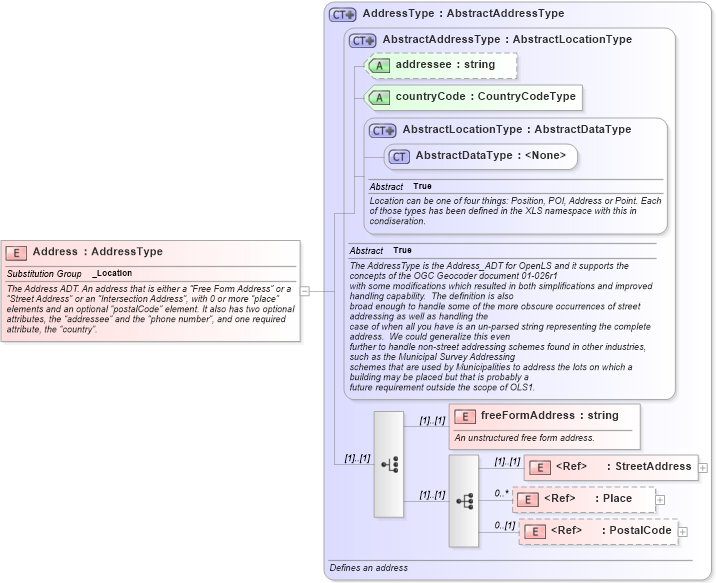

XSD Schema Diagram:

XSD Diagram of Address in schema ols_xsd (National Information Exchange Model (NEIM))

XSD Schema Code:

<element name="Address" type="xls:AddressType" substitutionGroup="xls:_Location">
    <annotation>
        <documentation>The Address ADT. An address that is either a “Free Form Address” or a “Street Address” or an “Intersection Address”, with 0 or more “place” elements and an optional “postalCode” element. It also has two optional attributes, the “addressee” and the “phone number”, and one required attribute, the “country”.</documentation>
    </annotation>
</element>

Child Elements:

Name	Type	Min Occurs	Max Occurs
freeFormAddress	xls:freeFormAddress	(1)	(1)
StreetAddress	xls:StreetAddress	(1)	(1)
Place	xls:Place	0	unbounded
PostalCode	xls:PostalCode	0	(1)

Child Attributes:

Name	Type	Default Value	Use
addressee	xls:addressee		Optional
countryCode	xls:countryCode		Required

Derivation Tree:
	xls:AbstractDataType xls:AbstractLocationType xls:AbstractAddressType xls:AddressType *Address*

References:
	xls:_Location
