Documentation for National Information Exchange Model (NEIM)
Definition Type: Element
Name: AdministrativeArea
Namespace: http://www.landxml.org/schema/LandXML-1.1
Containing Schema: LandXML-1.1.xsd
Abstract
Documentation:
This element stores the administrative boundaries for a survey
Collapse XSD Schema Diagram:

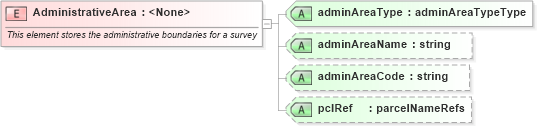

Drilldown into pclRef in schema landxml-1_1_xsd Drilldown into adminAreaCode in schema landxml-1_1_xsd Drilldown into adminAreaName in schema landxml-1_1_xsd Drilldown into adminAreaType in schema landxml-1_1_xsdXSD Diagram of AdministrativeArea in schema landxml-1_1_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:element name="AdministrativeArea">
    <xs:annotation>
        <xs:documentation>This element stores the administrative boundaries for a survey</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:attribute name="adminAreaType" type="adminAreaTypeType" use="required" />
        <xs:attribute name="adminAreaName" type="xs:string" />
        <xs:attribute name="adminAreaCode" type="xs:string" />
        <xs:attribute name="pclRef" type="parcelNameRefs" />
    </xs:complexType>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
adminAreaType land:adminAreaType Required
adminAreaName land:adminAreaName (Optional)
adminAreaCode land:adminAreaCode (Optional)
pclRef land:pclRef (Optional)
