Definition Type: Element
Name: AlignPI
Namespace: http://www.landxml.org/schema/LandXML-1.1
Containing Schema: LandXML-1.1.xsd
Abstract
Documentation:
A Single Alignment PI Definition
Collapse XSD Schema Diagram:

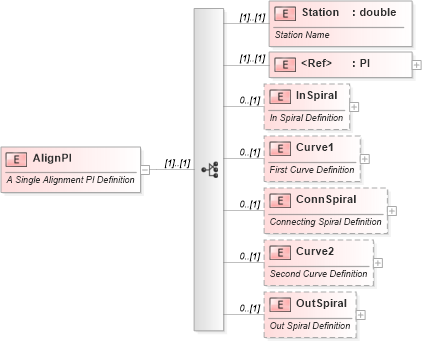

Drilldown into OutSpiral in schema landxml-1_1_xsd Drilldown into Curve2 in schema landxml-1_1_xsd Drilldown into ConnSpiral in schema landxml-1_1_xsd Drilldown into Curve1 in schema landxml-1_1_xsd Drilldown into InSpiral in schema landxml-1_1_xsd Drilldown into PI in schema landxml-1_1_xsd Drilldown into Station in schema landxml-1_1_xsdXSD Diagram of AlignPI in schema landxml-1_1_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:element name="AlignPI">
    <xs:annotation>
        <xs:documentation>A Single Alignment PI Definition</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:all>
            <xs:element name="Station" type="xs:double">
                <xs:annotation>
                    <xs:documentation>Station Name</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:element ref="PI" />
            <xs:element name="InSpiral" minOccurs="0">
                <xs:annotation>
                    <xs:documentation>In Spiral Definition</xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:all>
                        <xs:element ref="Spiral" />
                    </xs:all>
                </xs:complexType>
            </xs:element>
            <xs:element name="Curve1" minOccurs="0">
                <xs:annotation>
                    <xs:documentation>First Curve Definition</xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:all>
                        <xs:element ref="Curve" />
                    </xs:all>
                </xs:complexType>
            </xs:element>
            <xs:element name="ConnSpiral" minOccurs="0">
                <xs:annotation>
                    <xs:documentation>Connecting Spiral Definition</xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:all>
                        <xs:element ref="Spiral" />
                    </xs:all>
                </xs:complexType>
            </xs:element>
            <xs:element name="Curve2" minOccurs="0">
                <xs:annotation>
                    <xs:documentation>Second Curve Definition</xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:all>
                        <xs:element ref="Curve" />
                    </xs:all>
                </xs:complexType>
            </xs:element>
            <xs:element name="OutSpiral" minOccurs="0">
                <xs:annotation>
                    <xs:documentation>Out Spiral Definition</xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:all>
                        <xs:element ref="Spiral" />
                    </xs:all>
                </xs:complexType>
            </xs:element>
        </xs:all>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Station land:Station (1) (1)
PI land:PI (1) (1)
InSpiral land:InSpiral 0 (1)
Curve1 land:Curve1 0 (1)
ConnSpiral land:ConnSpiral 0 (1)
Curve2 land:Curve2 0 (1)
OutSpiral land:OutSpiral 0 (1)
