Documentation for National Information Exchange Model (NEIM)
Definition Type: Element
Name: Application
Namespace: http://www.landxml.org/schema/LandXML-1.1
Containing Schema: LandXML-1.1.xsd
Abstract
Documentation:
Optional element to identify the software that was used to create the file.

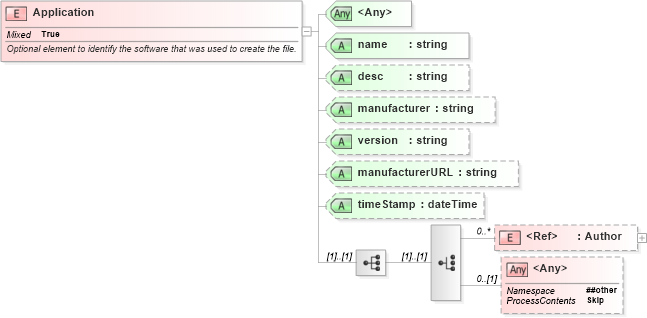

Collapse XSD Schema Diagram:
Drilldown into Author in schema landxml-1_1_xsd Drilldown into timeStamp in schema landxml-1_1_xsd Drilldown into manufacturerURL in schema landxml-1_1_xsd Drilldown into version in schema landxml-1_1_xsd Drilldown into manufacturer in schema landxml-1_1_xsd Drilldown into desc in schema landxml-1_1_xsd Drilldown into name in schema landxml-1_1_xsdXSD Diagram of Application in schema landxml-1_1_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:element name="Application">
    <xs:annotation>
        <xs:documentation>Optional element to identify the software that was used to create the file.</xs:documentation>
    </xs:annotation>
    <xs:complexType mixed="true">
        <xs:sequence>
            <xs:choice>
                <xs:element ref="Author" minOccurs="0" maxOccurs="unbounded" />
                <xs:any namespace="##other" processContents="skip" minOccurs="0" />
            </xs:choice>
        </xs:sequence>
        <xs:attribute name="name" type="xs:string" use="required" />
        <xs:attribute name="desc" type="xs:string" />
        <xs:attribute name="manufacturer" type="xs:string" />
        <xs:attribute name="version" type="xs:string" />
        <xs:attribute name="manufacturerURL" type="xs:string" />
        <xs:attribute name="timeStamp" type="xs:dateTime" use="optional" />
        <xs:anyAttribute />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Author land:Author 0 unbounded
<xs:any> Allowed namespace: '##other' 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
name land:name Required
desc land:desc (Optional)
manufacturer land:manufacturer (Optional)
version land:version (Optional)
manufacturerURL land:manufacturerURL (Optional)
timeStamp land:timeStamp Optional
<anyAttribute>
