Definition Type: Element
Name: BacksightPoint
Namespace: http://www.landxml.org/schema/LandXML-1.1
Type: land:PointType
Containing Schema: LandXML-1.1.xsd
Abstract
Documentation:
Represents a 2D or 3D location for the backsight It is defined by either a coordinate text value ("north east" or "north east elev") or a CgPoint number reference "pntRef" attribute.

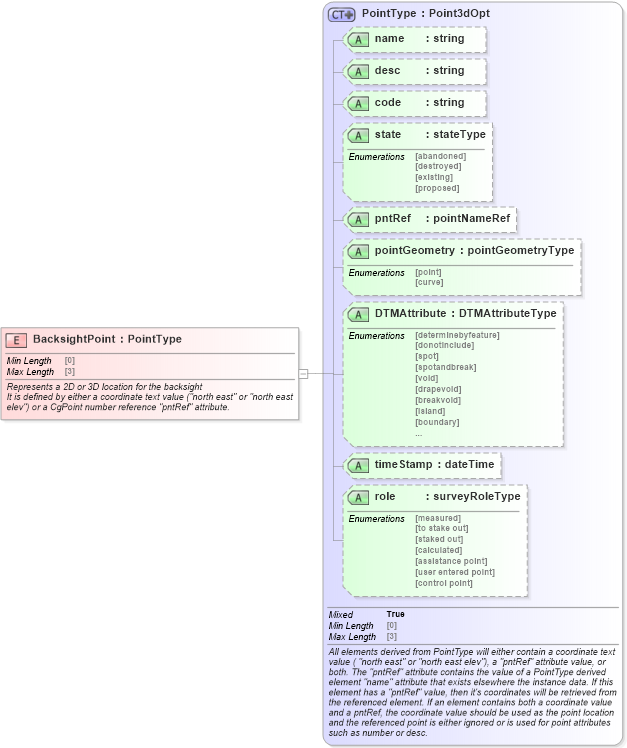

Collapse XSD Schema Diagram:
Drilldown into role in schema landxml-1_1_xsd Drilldown into timeStamp in schema landxml-1_1_xsd Drilldown into DTMAttribute in schema landxml-1_1_xsd Drilldown into pointGeometry in schema landxml-1_1_xsd Drilldown into pntRef in schema landxml-1_1_xsd Drilldown into state in schema landxml-1_1_xsd Drilldown into code in schema landxml-1_1_xsd Drilldown into desc in schema landxml-1_1_xsd Drilldown into name in schema landxml-1_1_xsd Drilldown into PointType in schema landxml-1_1_xsdXSD Diagram of BacksightPoint in schema landxml-1_1_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:element name="BacksightPoint" type="PointType">
    <xs:annotation>
        <xs:documentation>Represents a 2D or 3D location for the backsight</xs:documentation>
        <xs:documentation>It is defined by either a coordinate text value ("north east" or "north east elev") or a CgPoint number reference "pntRef" attribute.</xs:documentation>
    </xs:annotation>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
name land:name (Optional)
desc land:desc (Optional)
code land:code (Optional)
state land:state (Optional)
pntRef land:pntRef (Optional)
pointGeometry land:pointGeometry (Optional)
DTMAttribute land:DTMAttribute (Optional)
timeStamp land:timeStamp Optional
role land:role Optional
Collapse Derivation Tree:
