Definition Type: Element
Name: CharacterGlyphAppearance
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Containing Schema: IFC2X2_FINAL.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Collapse XSD Schema Diagram:

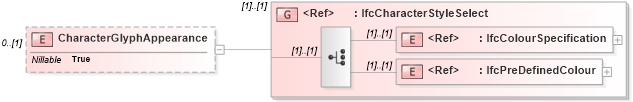

Drilldown into IfcPreDefinedColour in schema ifc2x2_final_xsd Drilldown into IfcColourSpecification in schema ifc2x2_final_xsd Drilldown into IfcCharacterStyleSelect in schema ifc2x2_final_xsdXSD Diagram of CharacterGlyphAppearance in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:element name="CharacterGlyphAppearance" nillable="true" minOccurs="0">
    <xs:complexType>
        <xs:group ref="ifc:IfcCharacterStyleSelect" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IfcColourSpecification ifc:IfcColourSpecification (1) (1)
IfcPreDefinedColour ifc:IfcPreDefinedColour (1) (1)
