Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: ChargeConvictionAssociationType
Namespace: http://niem.gov/niem/domains/jxdm/4.0
Type: nc:AssociationType
Containing Schema: jxdm.xsd
Abstract
Documentation:
A data type for an association between a charge and a conviction.

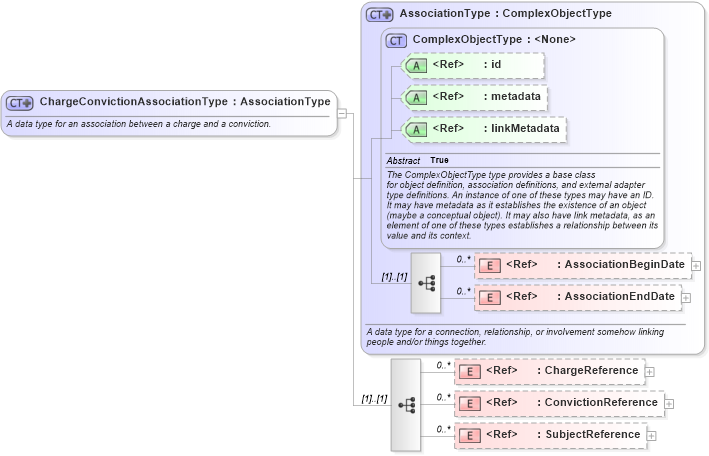

Collapse XSD Schema Diagram:
Drilldown into SubjectReference in schema jxdm_xsd Drilldown into ConvictionReference in schema jxdm_xsd Drilldown into ChargeReference in schema jxdm_xsd Drilldown into AssociationEndDate in schema niem-core_xsd Drilldown into AssociationBeginDate in schema niem-core_xsd Drilldown into linkMetadata in schema structures_xsd Drilldown into metadata in schema structures_xsd Drilldown into id in schema structures_xsd Drilldown into ComplexObjectType in schema structures_xsd Drilldown into AssociationType in schema niem-core_xsdXSD Diagram of ChargeConvictionAssociationType in schema jxdm_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xsd:complexType name="ChargeConvictionAssociationType">
    <xsd:annotation>
        <xsd:documentation>A data type for an association between a charge and a conviction.</xsd:documentation>
        <xsd:appinfo>
            <i:Base i:namespace="http://niem.gov/niem/niem-core/2.0" i:name="AssociationType" xmlns:i="http://niem.gov/niem/appinfo/2.0" />
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="nc:AssociationType">
            <xsd:sequence>
                <xsd:element ref="j:ChargeReference" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="j:ConvictionReference" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="j:SubjectReference" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AssociationBeginDate nc:AssociationBeginDate 0 unbounded
AssociationEndDate nc:AssociationEndDate 0 unbounded
ChargeReference j:ChargeReference 0 unbounded
ConvictionReference j:ConvictionReference 0 unbounded
SubjectReference j:SubjectReference 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id s:id (Optional)
metadata s:metadata (Optional)
linkMetadata s:linkMetadata (Optional)
Collapse Derivation Tree:
Collapse References:
j:ChargeConvictionAssociation
