Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: CitizenshipType
Namespace: http://niem.gov/niem/domains/screening/2.0
Type: s:ComplexObjectType
Containing Schema: screening.xsd
Abstract

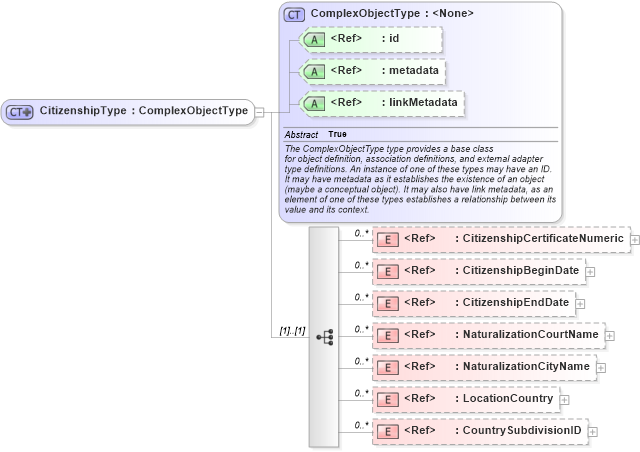

Collapse XSD Schema Diagram:
Drilldown into CountrySubdivisionID in schema screening_xsd Drilldown into LocationCountry in schema niem-core_xsd Drilldown into NaturalizationCityName in schema screening_xsd Drilldown into NaturalizationCourtName in schema screening_xsd Drilldown into CitizenshipEndDate in schema screening_xsd Drilldown into CitizenshipBeginDate in schema screening_xsd Drilldown into CitizenshipCertificateNumeric in schema screening_xsd Drilldown into linkMetadata in schema structures_xsd Drilldown into metadata in schema structures_xsd Drilldown into id in schema structures_xsd Drilldown into ComplexObjectType in schema structures_xsdXSD Diagram of CitizenshipType in schema screening_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xsd:complexType name="CitizenshipType">
    <xsd:annotation>
        <xsd:appinfo>
            <i:Base i:namespace="http://niem.gov/niem/structures/2.0" i:name="Object" xmlns:i="http://niem.gov/niem/appinfo/2.0" />
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="s:ComplexObjectType">
            <xsd:sequence>
                <xsd:element ref="scr:CitizenshipCertificateNumeric" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="scr:CitizenshipBeginDate" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="scr:CitizenshipEndDate" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="scr:NaturalizationCourtName" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="scr:NaturalizationCityName" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:LocationCountry" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="scr:CountrySubdivisionID" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CitizenshipCertificateNumeric scr:CitizenshipCertificateNumeric 0 unbounded
CitizenshipBeginDate scr:CitizenshipBeginDate 0 unbounded
CitizenshipEndDate scr:CitizenshipEndDate 0 unbounded
NaturalizationCourtName scr:NaturalizationCourtName 0 unbounded
NaturalizationCityName scr:NaturalizationCityName 0 unbounded
LocationCountry nc:LocationCountry 0 unbounded
CountrySubdivisionID scr:CountrySubdivisionID 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id s:id (Optional)
metadata s:metadata (Optional)
linkMetadata s:linkMetadata (Optional)
Collapse Derivation Tree:
Collapse References:
scr:Citizenship
