Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: ConditionalValueType
Namespace: http://niem.gov/niem/external/ogc-swe-common/1.0.0/dhs-gmo/1.0.0
Type: swec:_GroupBaseType
Containing Schema: parameters.xsd
Abstract

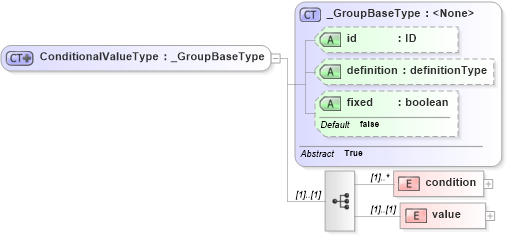

Collapse XSD Schema Diagram:
Drilldown into value in schema parameters_xsd Drilldown into condition in schema parameters_xsd Drilldown into fixed in schema parameters_xsd Drilldown into definition in schema parameters_xsd Drilldown into id in schema parameters_xsd Drilldown into _GroupBaseType in schema parameters_xsdXSD Diagram of ConditionalValueType in schema parameters_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:complexType name="ConditionalValueType">
    <xs:complexContent>
        <xs:extension base="swec:_GroupBaseType">
            <xs:sequence>
                <xs:element name="condition" maxOccurs="unbounded">
                    <xs:complexType>
                        <xs:choice minOccurs="0">
                            <xs:element ref="swec:Discussion" />
                            <xs:group ref="swec:AnyData" />
                        </xs:choice>
                        <xs:attribute name="name" type="swec:qnameSimpleType" use="required" />
                        <xs:attributeGroup ref="swec:AssociationAttributes" />
                    </xs:complexType>
                </xs:element>
                <xs:element name="value">
                    <xs:complexType>
                        <xs:group ref="swec:AnyData" minOccurs="0" />
                        <xs:attributeGroup ref="swec:AssociationAttributes" />
                    </xs:complexType>
                </xs:element>
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
condition swec:condition (1) unbounded
value swec:value (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id swec:id Optional
definition swec:definition Optional
fixed swec:fixed false Optional
Collapse Derivation Tree:
Collapse References:
swec:ConditionalValue
